Sawdust shredder
Feed size
Capacity
Call for consultation
Power
Sawdust shredderSALE

Application Areas:

Double-hole wood crusher is also called multi-functional wood crusher, two-in-one wood crusher, double-hole wood crusher is on the basis of the crusher to increase the disk cutting function, in addition to crushing wood, scraps, bark, branches and other general raw materials, new...

Product Description

  Sawdust mill is also called sawdust machine, sawdust mill, mainly talking about waste wood, branches, bark and other wood processing into sawdust machine, in addition, this equipment can also process straw, corncob and other crop surplus materials, this equipment supply efficiency is high, simple operation, use and maintenance are very convenient.




Technical Features

  The material enters the crushing chamber directly from the feed port, the high-speed air impact and the rotary cutting of the material with the hammer, so that the material is fully crushed, and then filtered out by the built-in screen, so the user does not have to worry about the thickness and size of the sawdust can not meet the requirements, and the screen can determine the size of the discharge.



Working Principle

   This equipment is not easy to crush the raw materials into the cutting inlet first cut into pieces, and then crushed by the hammer in the crushing chamber, after two processes to crush the material more thoroughly, more reflects the double mouth of the wood crusher.

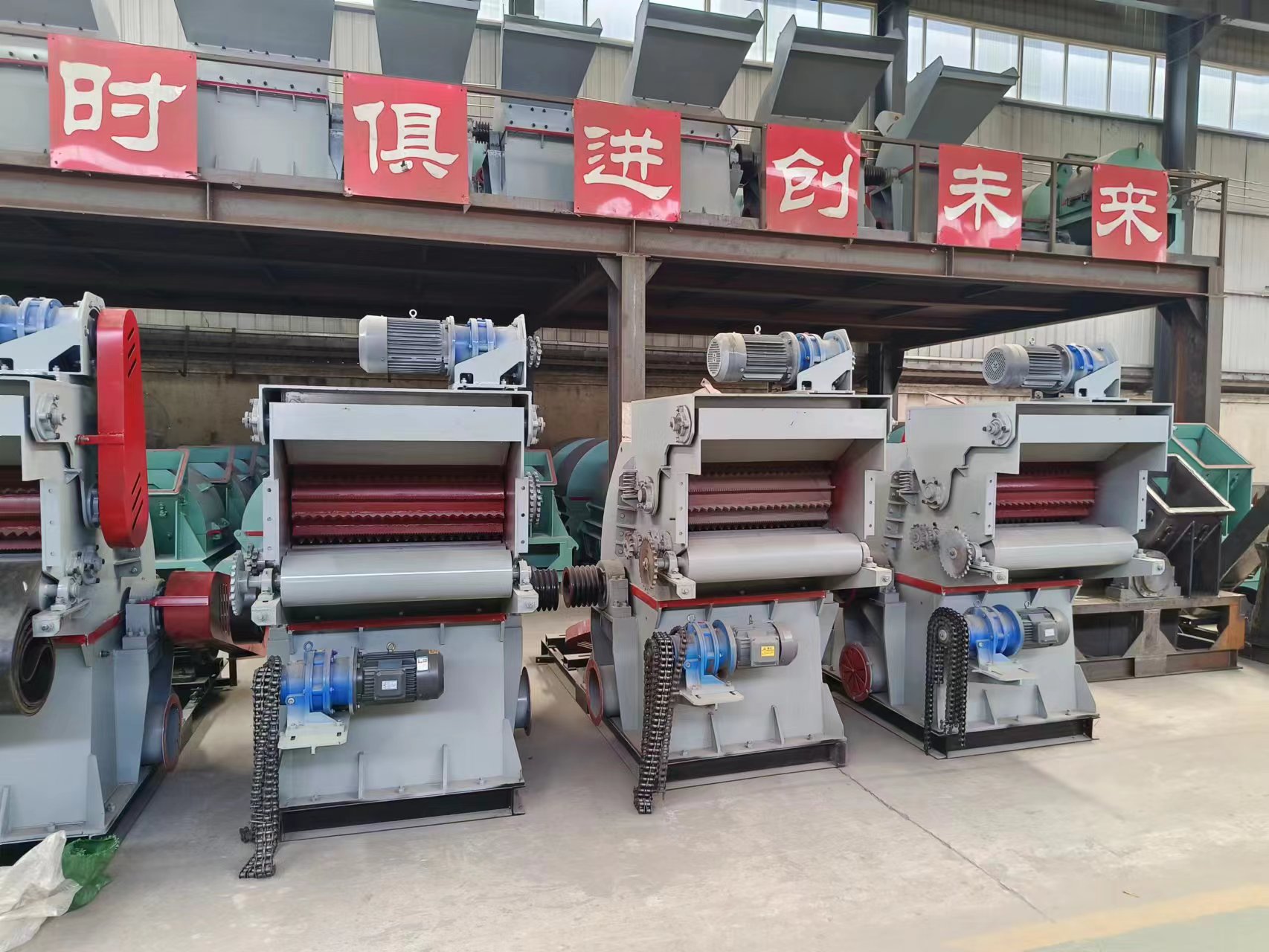

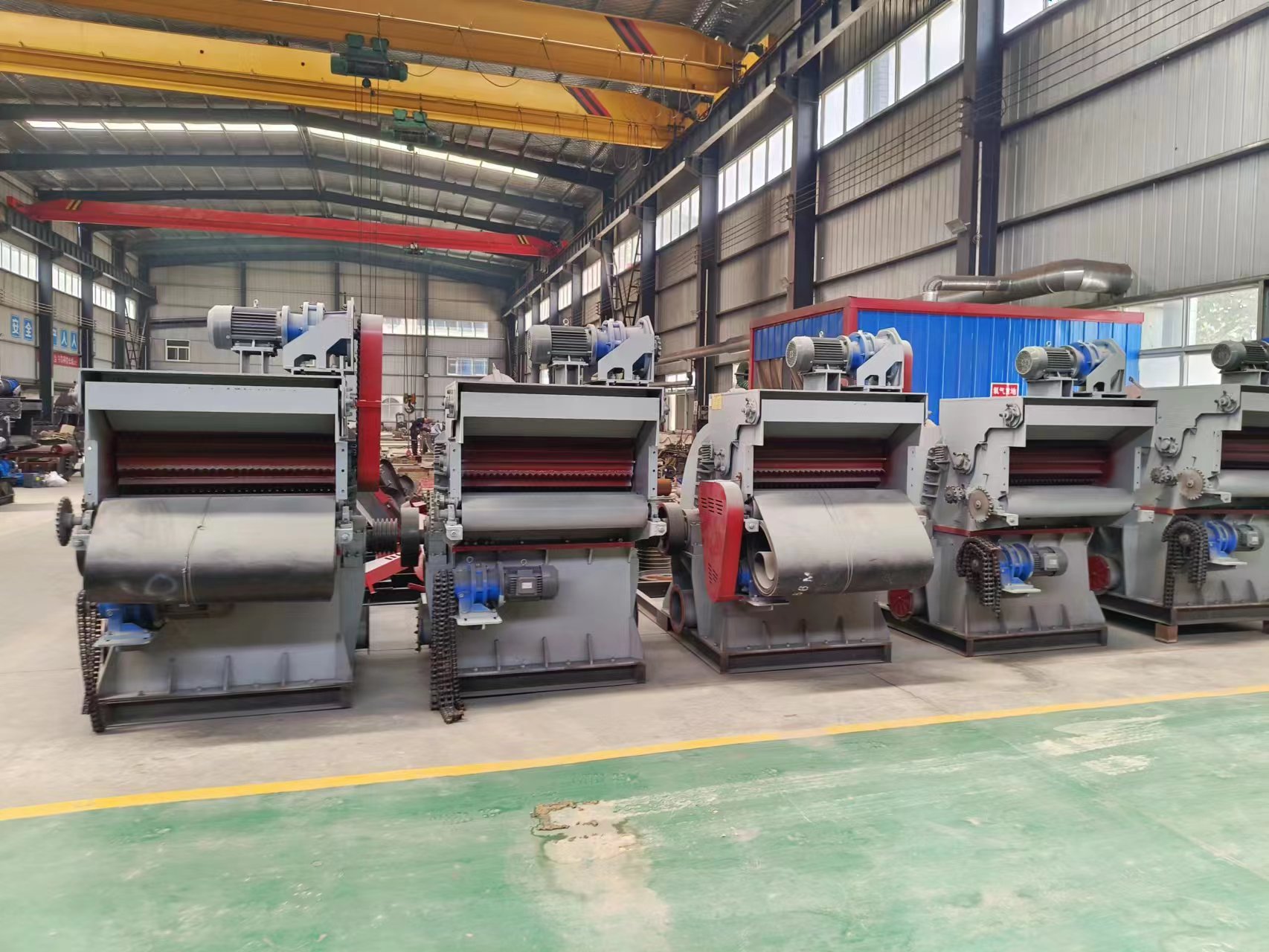

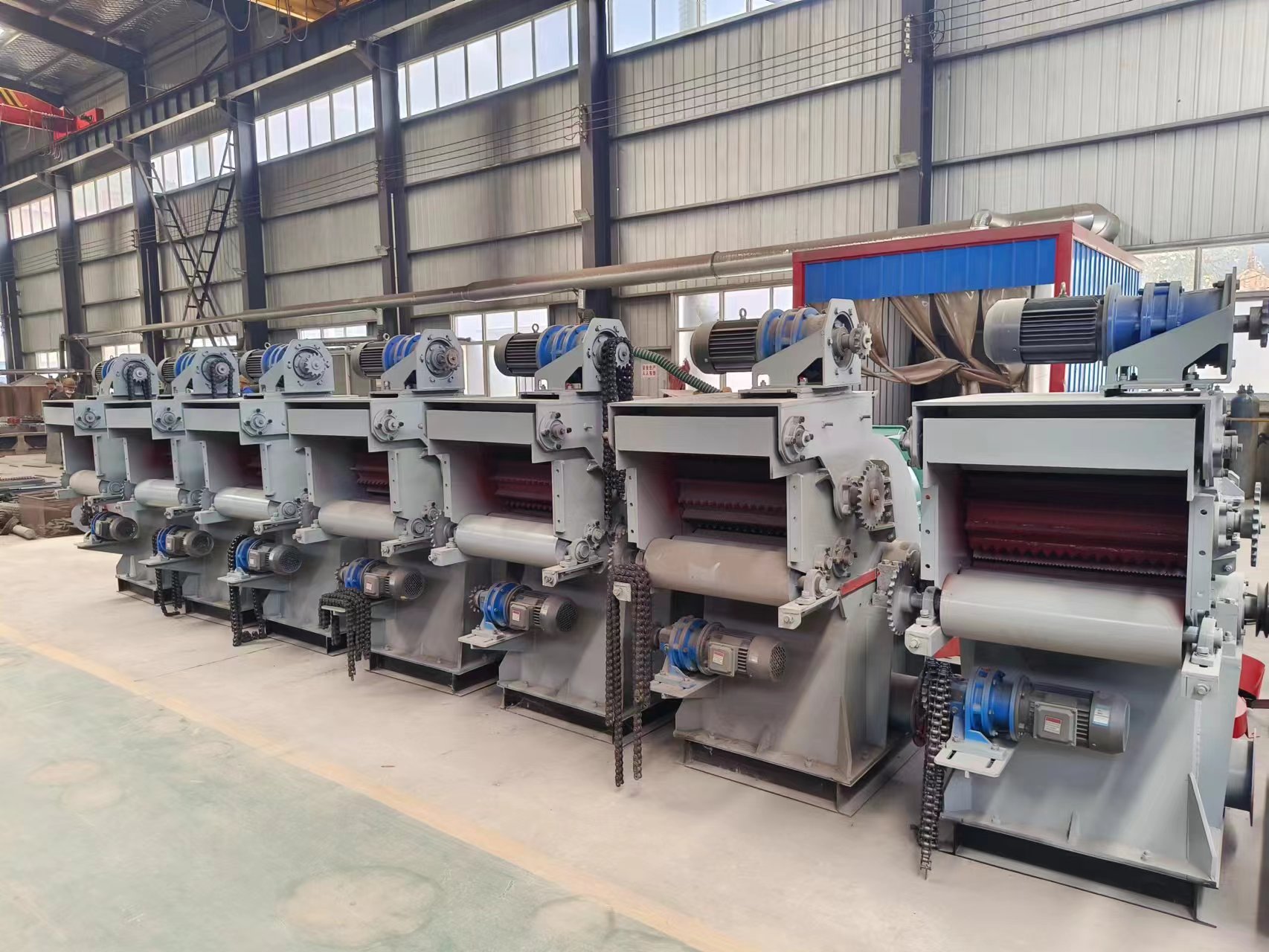

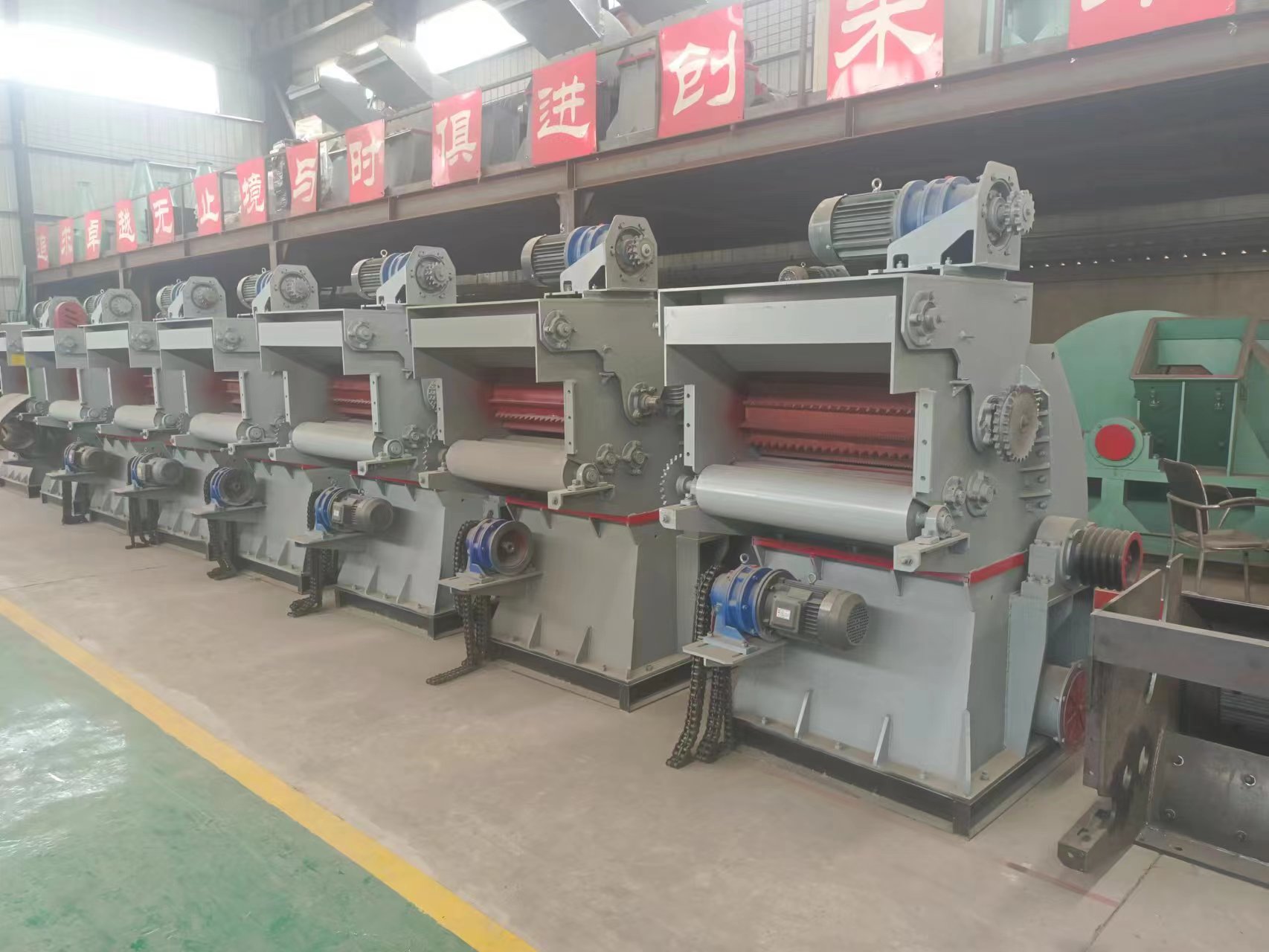

Product Gallery
Performance parameter

Model

Number of screens (sheet)

Number of pieces (pieces)

Main Engine Power (kw)

Production (tons)

Overall dimensions (mm)

600

1

40

30-37

1.5-1.8

2500*1100*1520

800

1

48

45-55

2-2.5

2900*1360*1740

1000

1

64

55-75

3-3.5

2900*1600*1760

1300

1

80

90-110

4-4.5

3500*1880*2150

1600

1

104

110-132

5-5.5

2550*2190*2230



We uses real evidence of power
