Application Areas:
Mobile wood chipper
Application Areas:
Mobile wood chipper
The tool change door of large disc wood chipper adopts oil cylinder push-pull type and manual type, which can be purchased by users. Complete set of wood chip production equipment with disc chipper as the main equipment, including multi model and multi specification disc chipper; The chip shaker and belt conveyor can be selected and matched according to the chip production scale. The auxiliary equipment knife grinder can be compared and supplied.

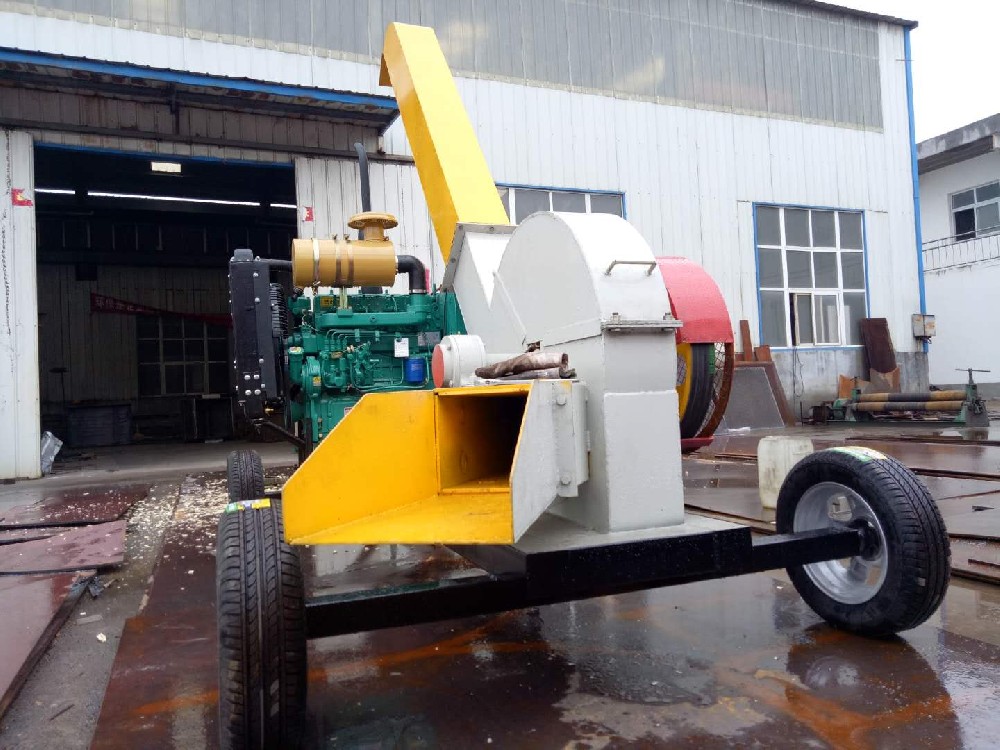

Diesel mobile wood chipping machine is developed on the basis of wood chipping machine. It is mainly made to facilitate our outdoor work. Today, I share with you the structural composition of diesel mobile wood chipping machine, hoping to help you.
When the diesel engine is started, the diesel engine wheel starts to run. The diesel engine and the wood chipping machine transmit power through the belt to drive the rotation of the main wheel. There is a cutter head on the main shaft of the main wheel, so the cutter head rotates repeatedly to cut wood. In addition, the blade on the cutter head also cuts wood, and the wood chips after cutting flow out of the discharge port, Directly load or spray on the ground.
Model | Feed port mm | Yield (t/h) | Auxiliary motor | Diesel engine | Spindle speed | Cutter diameter | Alloy steel blade | Machine weight (kg) |
800 | 200*200 | 3-6 | 22kw | 30马力 | 480 | 800 | 4 | 750 |
950 | 260*260 | 5-8 | 30kw | 40马力 | 550 | 950 | 4 | 900 |
1100 | 330*330 | 6-9 | 45kw | 50马力 | 600 | 1100 | 4 | 1900 |
1210 | 380*380 | 8-10 | 75kw | 90马力 | 600 | 1210 | 4和6 两种 | 2600 |
1410 | 450*450 | 10-15 | 90kw | 100马力 | 600 | 1410 | 4和6 两种 | 3500 |
