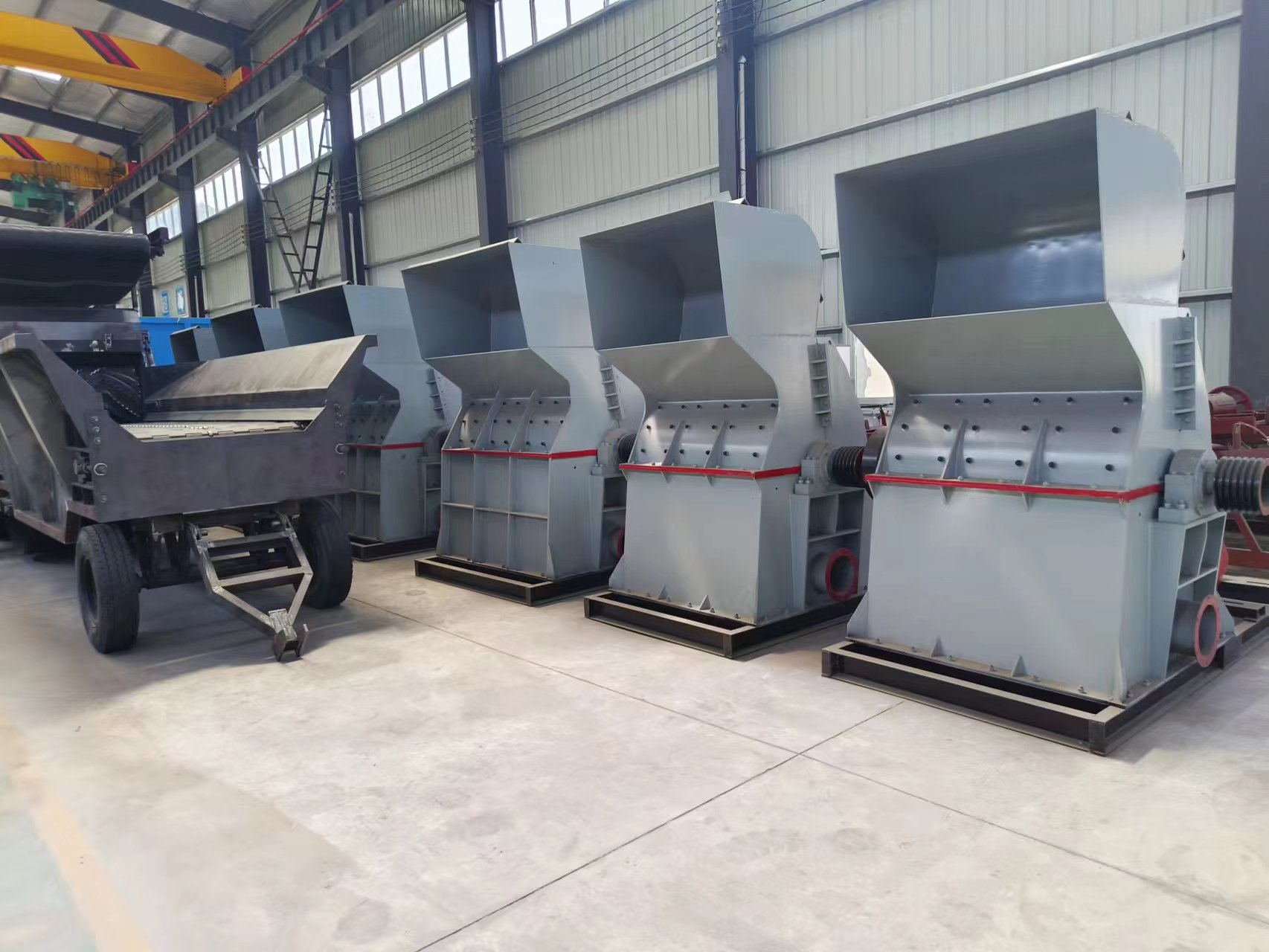

Aniseed wood crusher
Feed size
Capacity
Call for consultation
Power
Aniseed wood crusherSALE

Application Areas:

Wood shredder is mainly divided into single wood shredder and double wood shredder is a special equipment for the supply of high-quality wood powder and sawdust, one-time branches, leaves, pine, tung wood, miscellaneous wood, furniture factory scraps, bamboo, thatch, straw, high...

Product Description

  Large wood shredder is mainly divided into single wood shredder and double wood shredder is a special equipment for the supply of high-quality wood powder, sawdust, a one-time will be branches, leaves, pine, tung wood, miscellaneous wood, furniture factory scraps, bamboo, thatch, straw, sorghum stalk, corn stalk and other materials processing and crushing into uniform wood chips, due to its own investment is less, The advantages of large return, high value of wood chips, convenient and durable operation, etc., are the best equipment for small enterprises and self-employed people to process wood chips.





Technical Features

  1, the design is simple and reasonable, easy to operate, small footprint, suitable for flow operation, saving time and labor.

  2. The main parts of this equipment are made of wear-resistant materials after special treatment by technicians, which can be continuously produced and durable.

  3. The belt conveying device can be selected according to the user's needs, the automatic feeding level is high, and the material can be extruded by the magnetic roller and then entered the crushing chamber.

  4, low maintenance cost: low power; The tool adopts double-sided blade and can also be repeatedly sharpened to enhance the service life.

  5, suitable for mobility operations, this equipment we can according to the customer's specified requirements to produce suitable for field mobility operations of diesel mobile wood crusher.

  6, the shell of the wood crusher should be milling, the processing part is here in the bearing seat, the purpose is to make the bearing seat on both sides of the machine in the horizontal plane, but also conducive to protecting the big shaft.

  7, the inner shell of the wood crusher has a wear-resistant lining board, with the lining board can effectively protect the shell, but also conducive to the crushing of materials.



Working Principle

  The working principle of the wood crusher is that the material is crushed into the crushing chamber, under the impact, shear, friction and mutual impact between the teeth between the high-speed rotating active tooth plate and the fixed tooth plate, and the powder is crushed after the screen screening, which is a high-speed hammer crusher, the material entering the crushing chamber and the high-speed running hammer collision and the material impact between each other. Thus the fineness of the crushing is achieved.






Product Gallery
Performance parameter

Model

Number of screens (sheet)

Number of pieces (pieces)

Main Engine Power (kw)

Production (tons)

Overall dimensions (mm)

600

1

40

30-37

1.5-1.8

2500*1100*1520

800

1

48

45-55

2-2.5

2900*1360*1740

1000

1

64

55-75

3-3.5

2900*1600*1760

1300

1

80

90-110

4-4.5

3500*1880*2150

1600

1

104

110-132

5-5.5

2550*2190*2230
