Application Areas:
Widely used in papermaking, edible fungi, machine-made charcoal, particle board, sawdust board, high density board, medium fiber board and other industrial production
Application Areas:
Widely used in papermaking, edible fungi, machine-made charcoal, particle board, sawdust board, high density board, medium fiber board and other industrial production

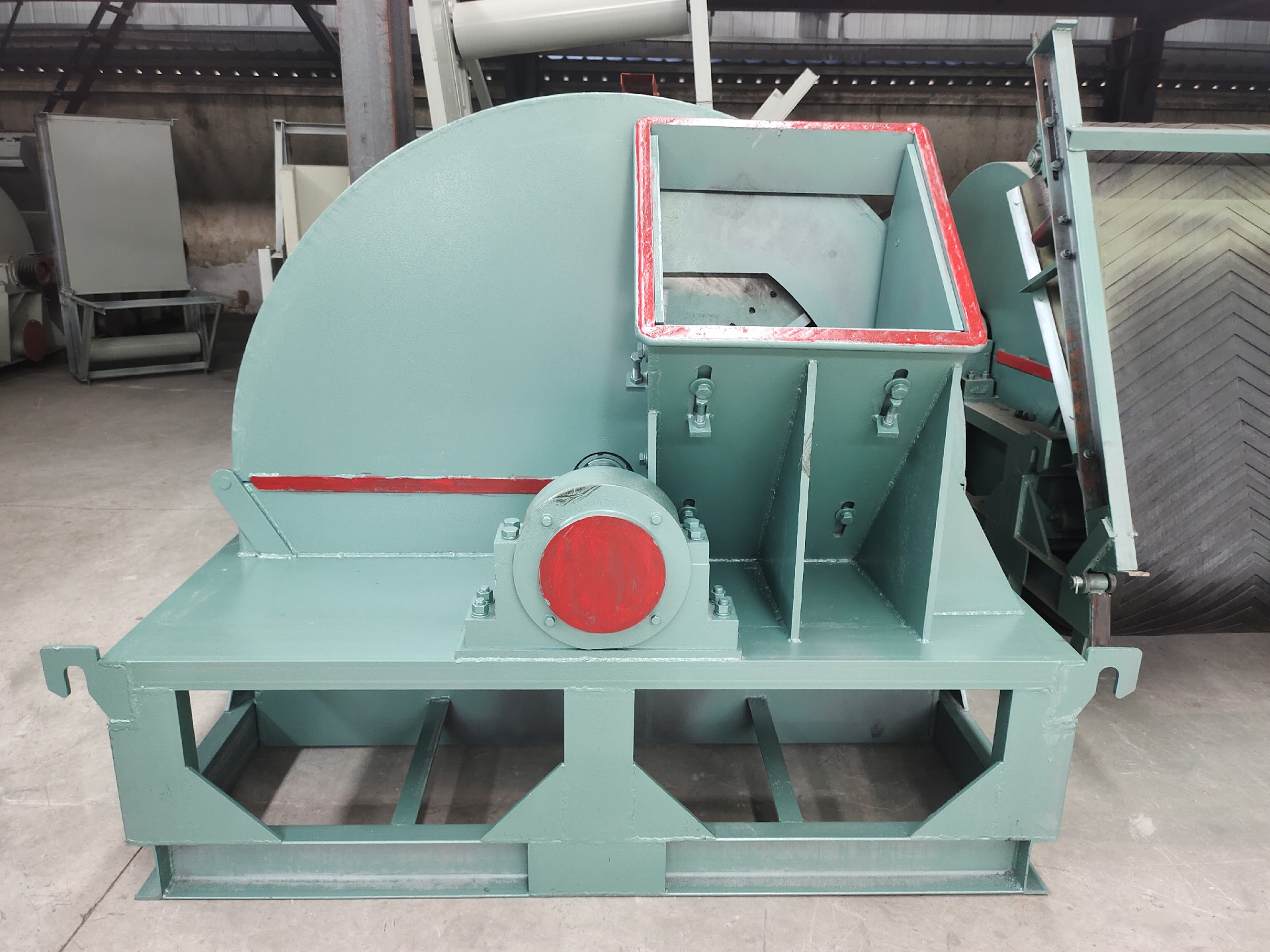

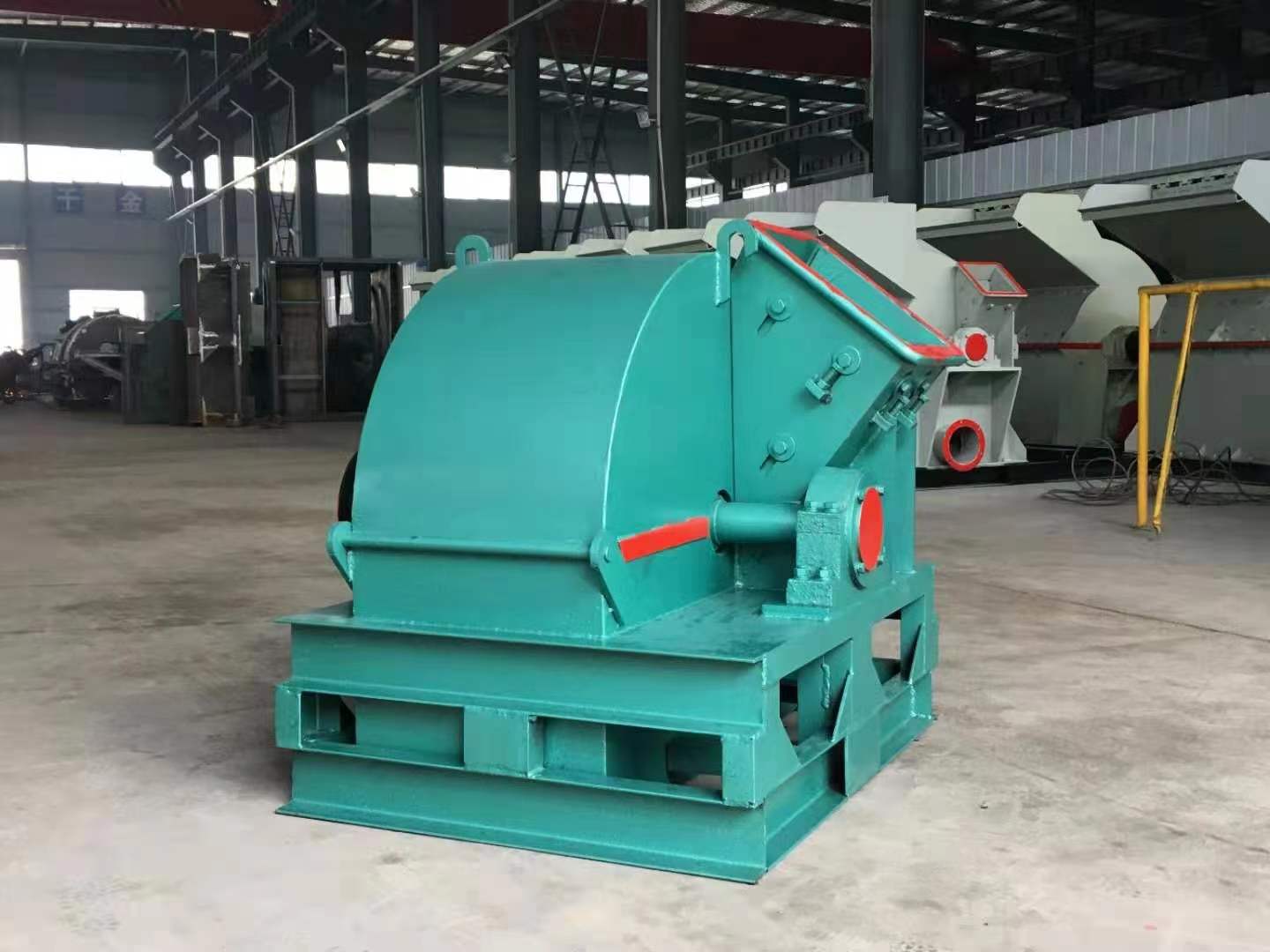

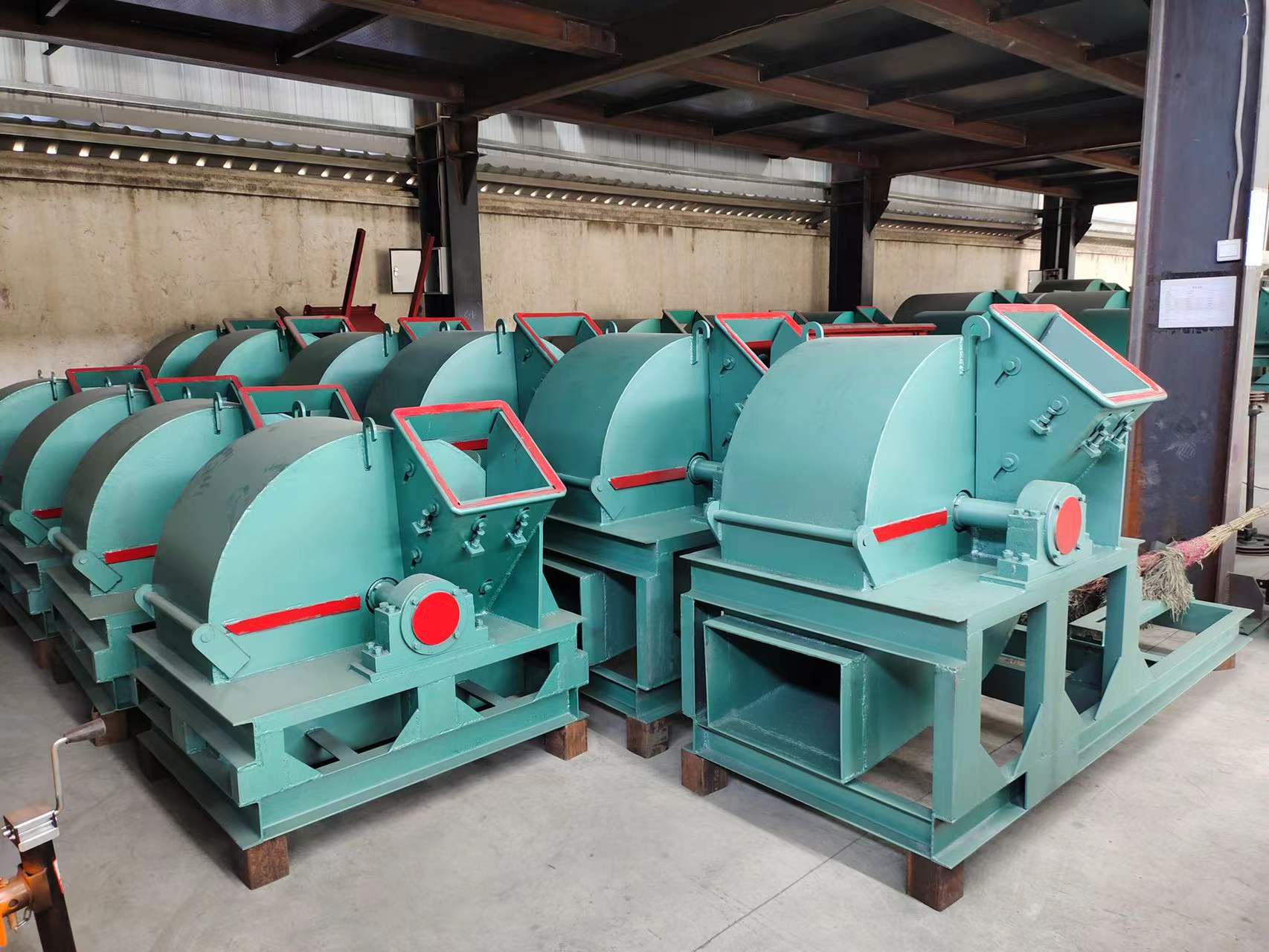

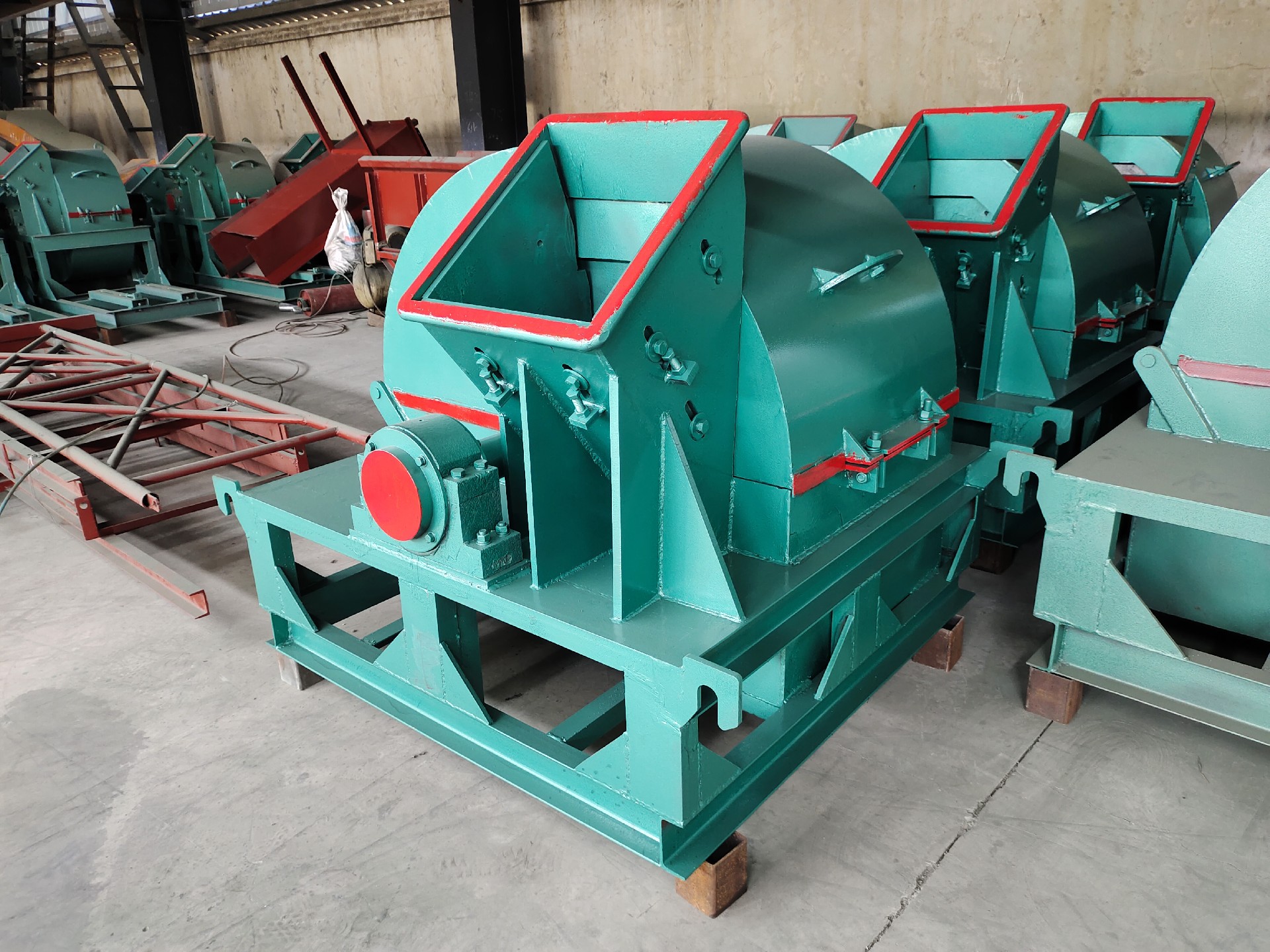

The sawdust crusher produced by our company is a special equipment for producing high-quality sawdust (sawdust). It is widely used in the material preparation section of industrial production such as papermaking, edible fungi, machine-made charcoal, particleboard, sawdust board, high-density board and MDF and a single base for wood powder (sawdust). The cutting raw materials are mainly logs and branches. It can process wood, branches and forks into sawdust at one time. It has the advantages of less investment, low energy consumption, high productivity, good economic benefits, convenient use and maintenance, etc.
1. The whole set of equipment is driven by only one motor, with simple structure, compact layout, low price, stable operation, low energy consumption, high output, good quality of sawdust finished products, adjustable sawdust size according to screen hole and low processing cost;
2. It can also be used for cutting fiber stalk like materials such as bamboo, thatch, corn stalk and sorghum stalk. The sawdust crusher can also be used for the production of particleboard, sawdust board and high-density board. At the same time, the sawdust crusher has also made a lot of contributions to the cultivation of edible fungi;
3. Sawdust crusher can customize wheel mobile equipment according to user needs to meet user needs.
At the same time, the equipment can also be used for cutting fibrous stalk materials such as bamboo, thatch, corn stalk and sorghum stalk. The sawdust crusher can also be used as raw material for particleboard, sawdust board and high density board This series of equipment is suitable for mobile operation. It is widely used in the material preparation section of small and medium-sized particleboard and fiberboard production enterprises. It can also be used for individual households to produce commercial wood chips.
Model | 400 | 500 | 600 | 700 |
Cutter diameter mm | 400 | 500 | 600 | 700 |
Blade number piece | 4 | 4 | 4 | 6 |
Blade length mm | 100 | 130 | 150 | 200 |
Feed port diameter mm | 150×150 | 200×200 | 250×250 | 300×300 |
Spindle speed r/min | 2600 | 2600 | 2500 | 2600 |
Equipped with motor kw | 5.5-7.5 | 11 | 15 | 18.5-22 |
With diesel engine horsepower | 15 | 20 | 30 | 45 |
Yield kg/h | 800-1000 | 1000-2000 | 2000-3000 | 3000-3500 |
