Application Areas:
The disk is used in the material preparation section in the production process of textile, papermaking, pulping, wood-based panel, etc
Application Areas:
The disk is used in the material preparation section in the production process of textile, papermaking, pulping, wood-based panel, etc

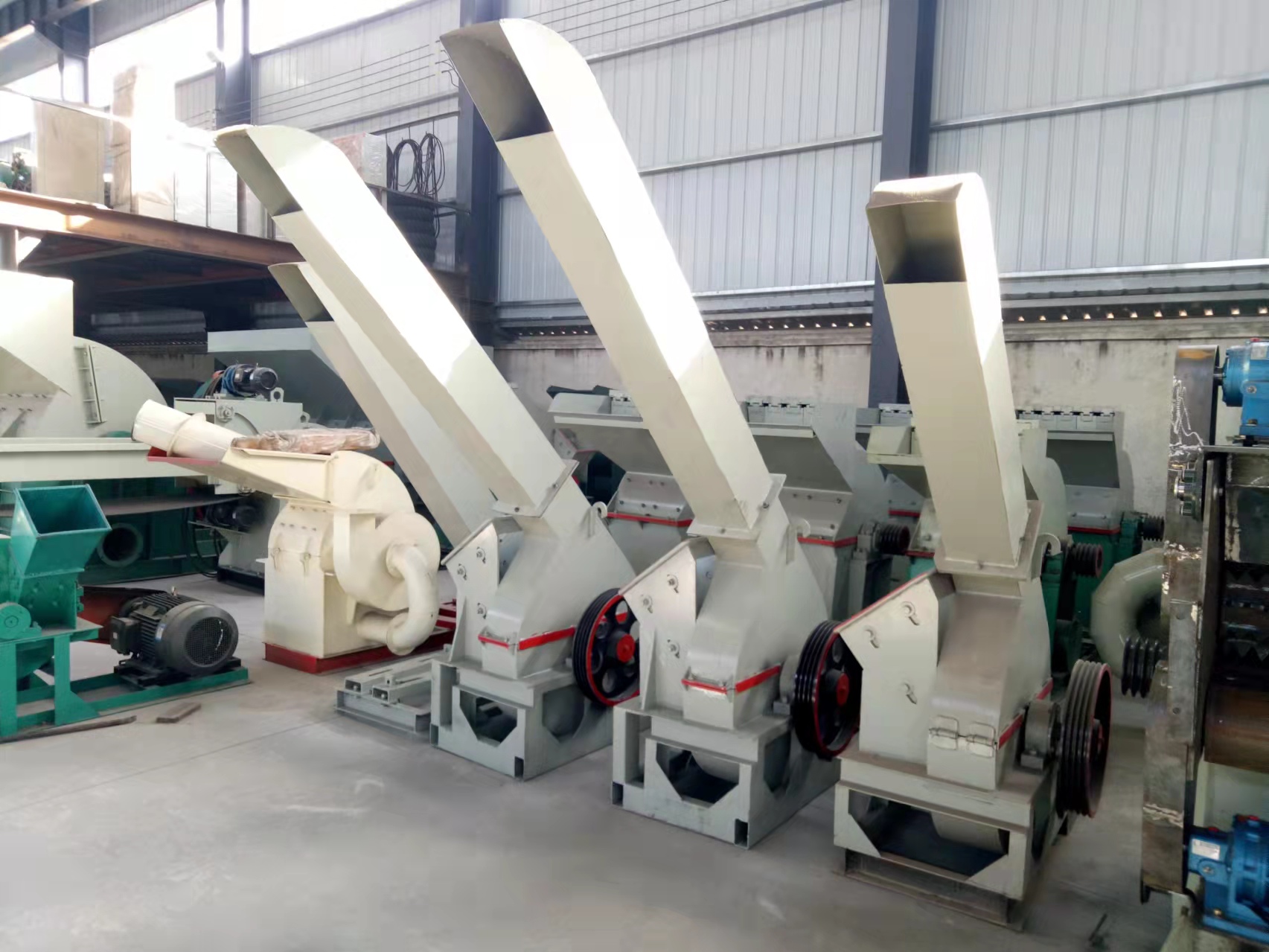

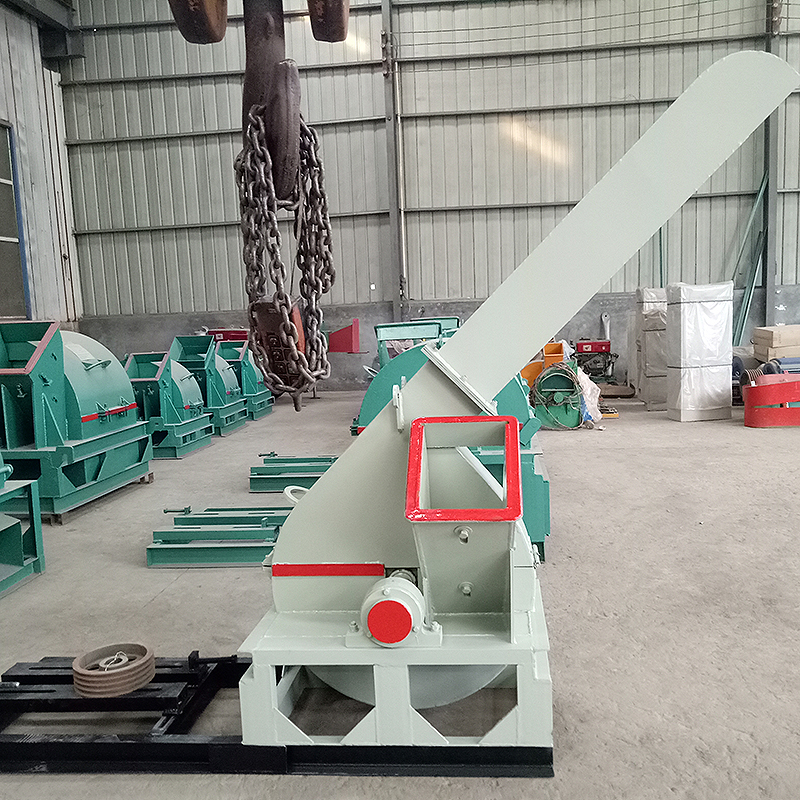

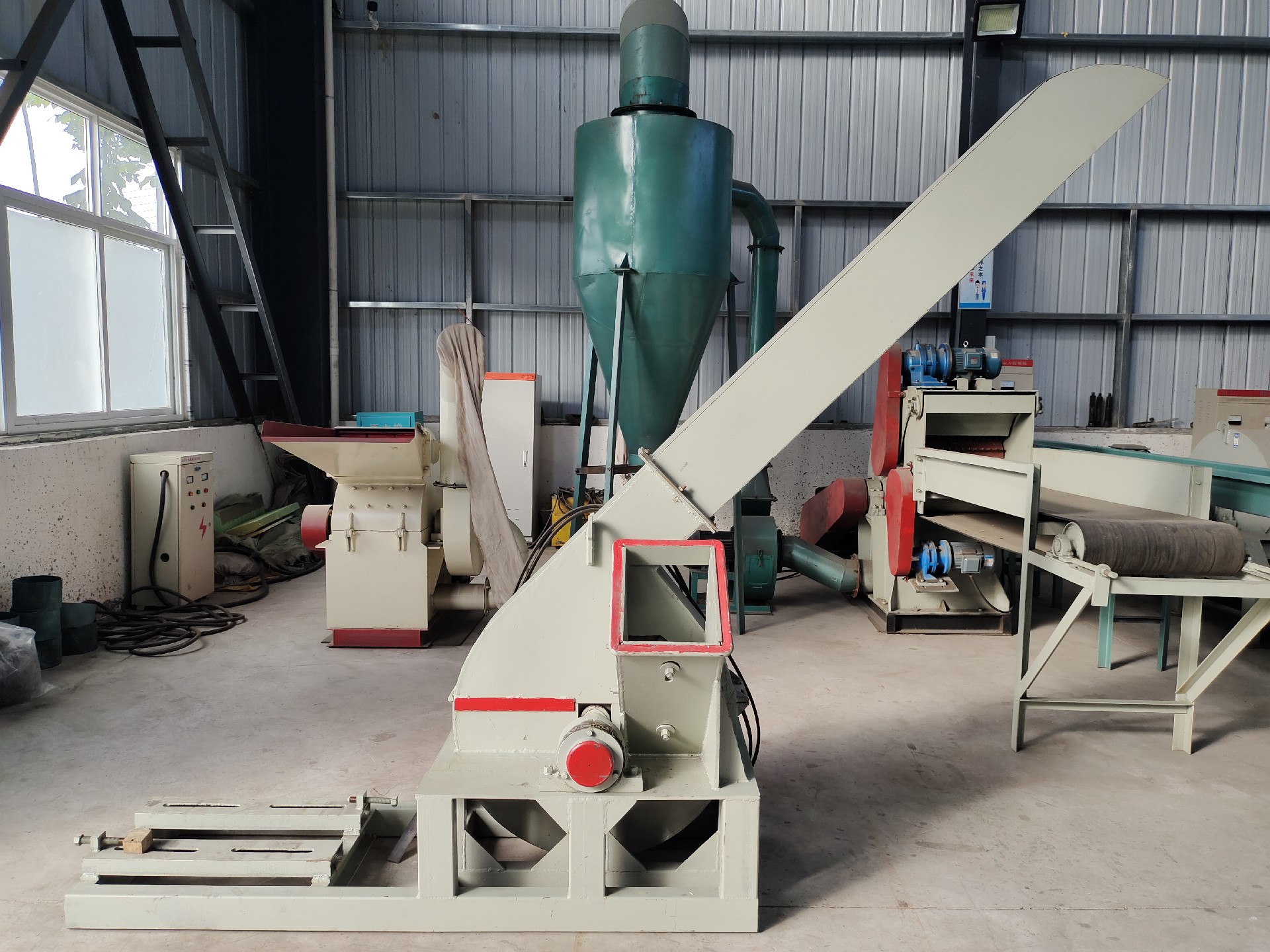

Wood chipper belongs to one of the series of wood processing equipment. It is widely used in the material preparation section in the production process of textile, papermaking, pulping, wood-based panel and other industries. The main cutting materials of the machine are small-diameter wood, bamboo, veneer and cutting residues after peeling.

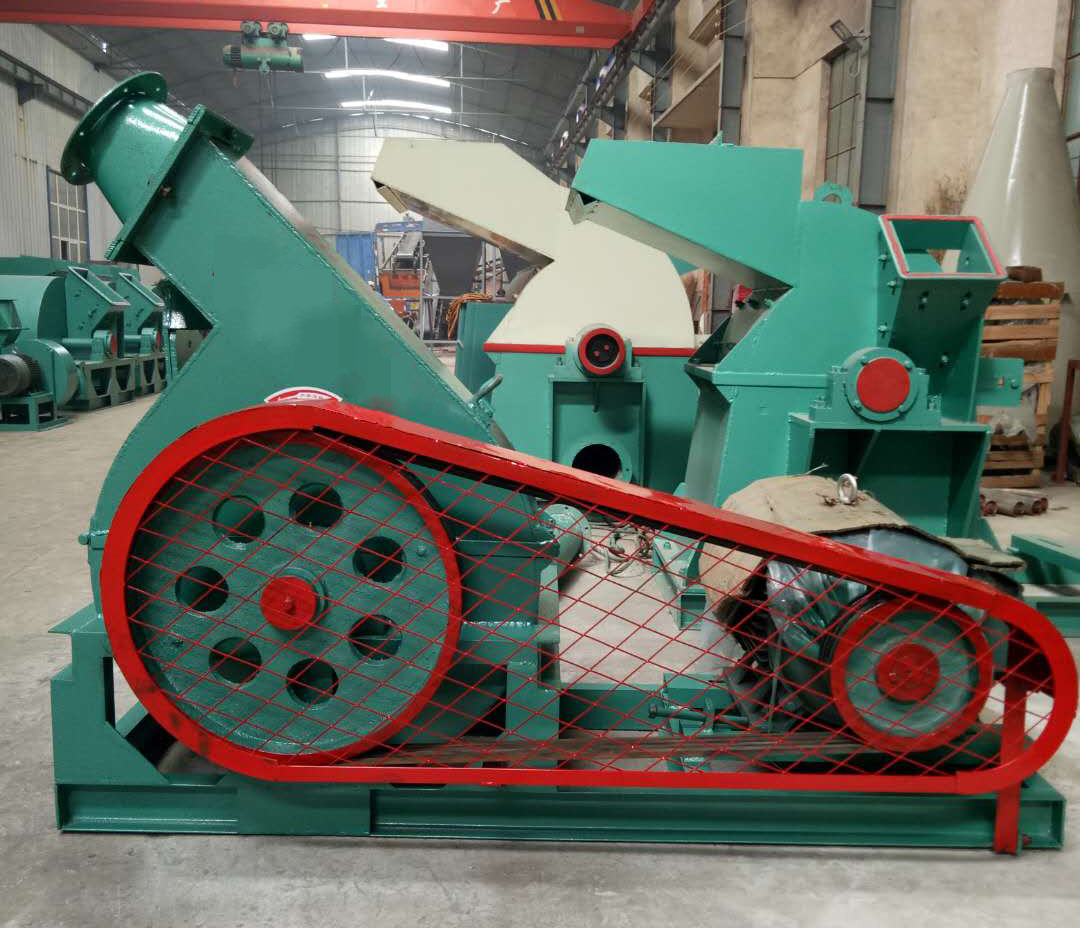

1, disc chipper adopts low pressure or high voltage motor, large wood chipper has two kinds of pulley drive and direct drive; There are two ways of feeding water and tilting, and there are two ways of discharging material: upper discharging and lower discharging.
2, disc chipper compact structure, reasonable layout, easy installation, easy operation and maintenance, high production capacity; When cutting logs, the wood chip quality is high, and the length of the wood chip can be freely adjusted within the specified range, which is a new disk chipper.
3, the production of this series of wood chipper, users can choose their own models according to needs.
4, disc chipper by the base, cutter, feed port, cover, electric control system and other parts.
The wood is fed by the feed port. When the wood is in contact with the cutting blade, it is cut with the high-speed rotation of the cutting cutter. The cutting mechanism is a rotating drum, which is installed with a number of flying knives. There are a number of square holes on the outer edge of the drum, the qualified sheet material cut down through the mesh sieve hole, there is a bottom discharge, the large sheet will be cut again in the machine.
Model | Feed port mm | Yield (t/h) | Auxiliary motor | Diesel engine | Spindle speed | Cutter diameter | Alloy steel blade | Machine weight (kg) |
800 | 200*200 | 3-6 | 22kw | 30马力 | 480 | 800 | 4 | 750 |
950 | 260*260 | 5-8 | 30kw | 40马力 | 550 | 950 | 4 | 900 |
1100 | 330*330 | 6-9 | 45kw | 50马力 | 600 | 1100 | 4 | 1900 |
1210 | 380*380 | 8-10 | 75kw | 90马力 | 600 | 1210 | 4和6 两种 | 2600 |
1410 | 450*450 | 10-15 | 90kw | 100马力 | 600 | 1410 | 4和6 两种 | 3500 |
