Application Areas：

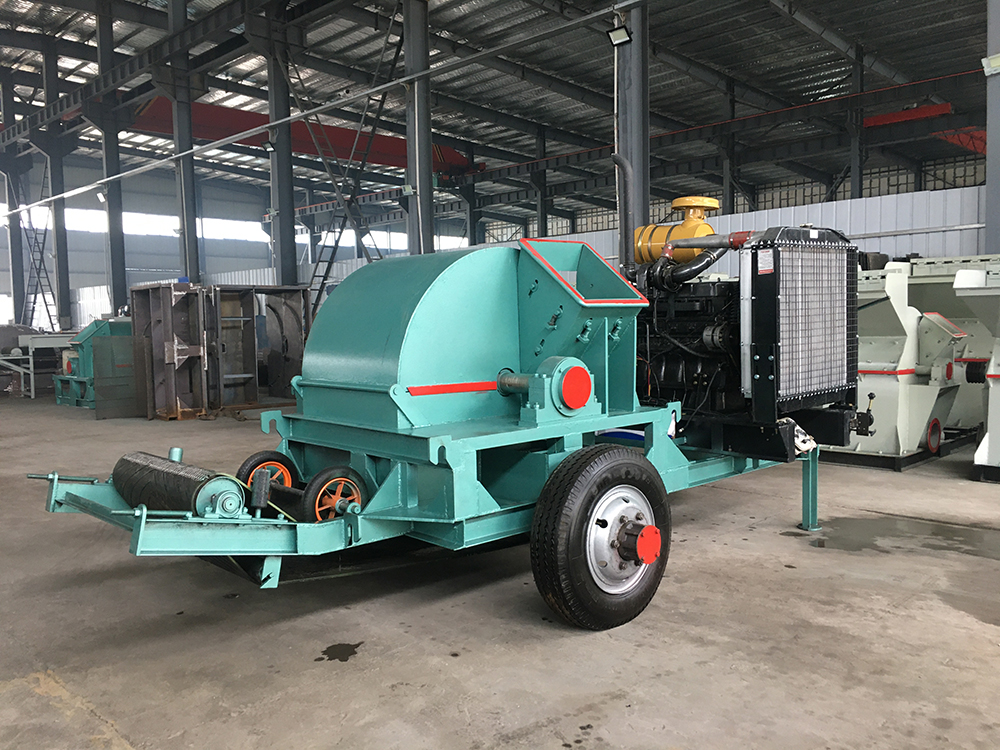

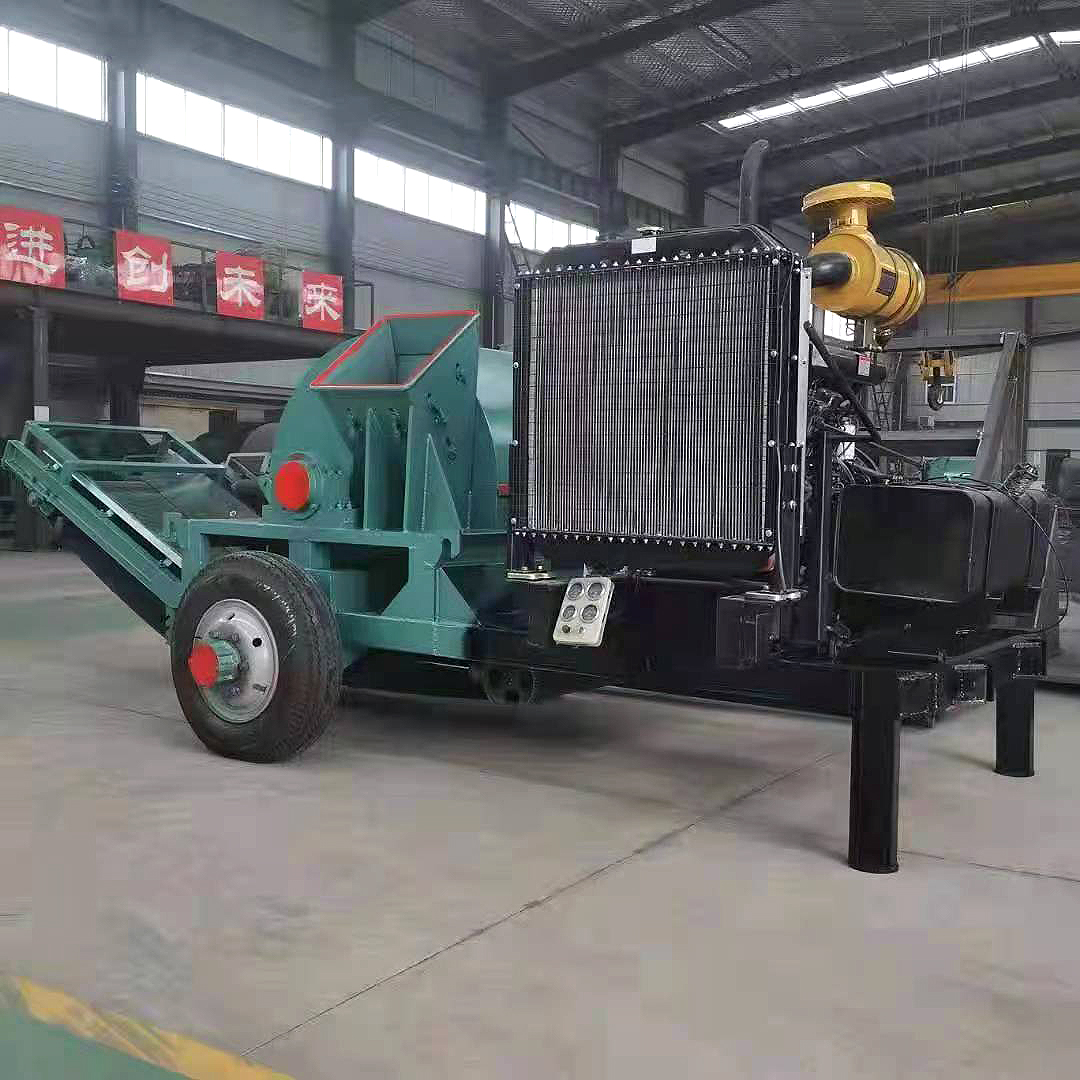

Diesel mobile sawdust machine is a new type of equipment supplied on the basis of traditional sawdust machine. Its biggest advantage is that the working site is flexible, without considering the power supply. There are more applications in gardens, forestry, highway tree maintenance, parks, golf...

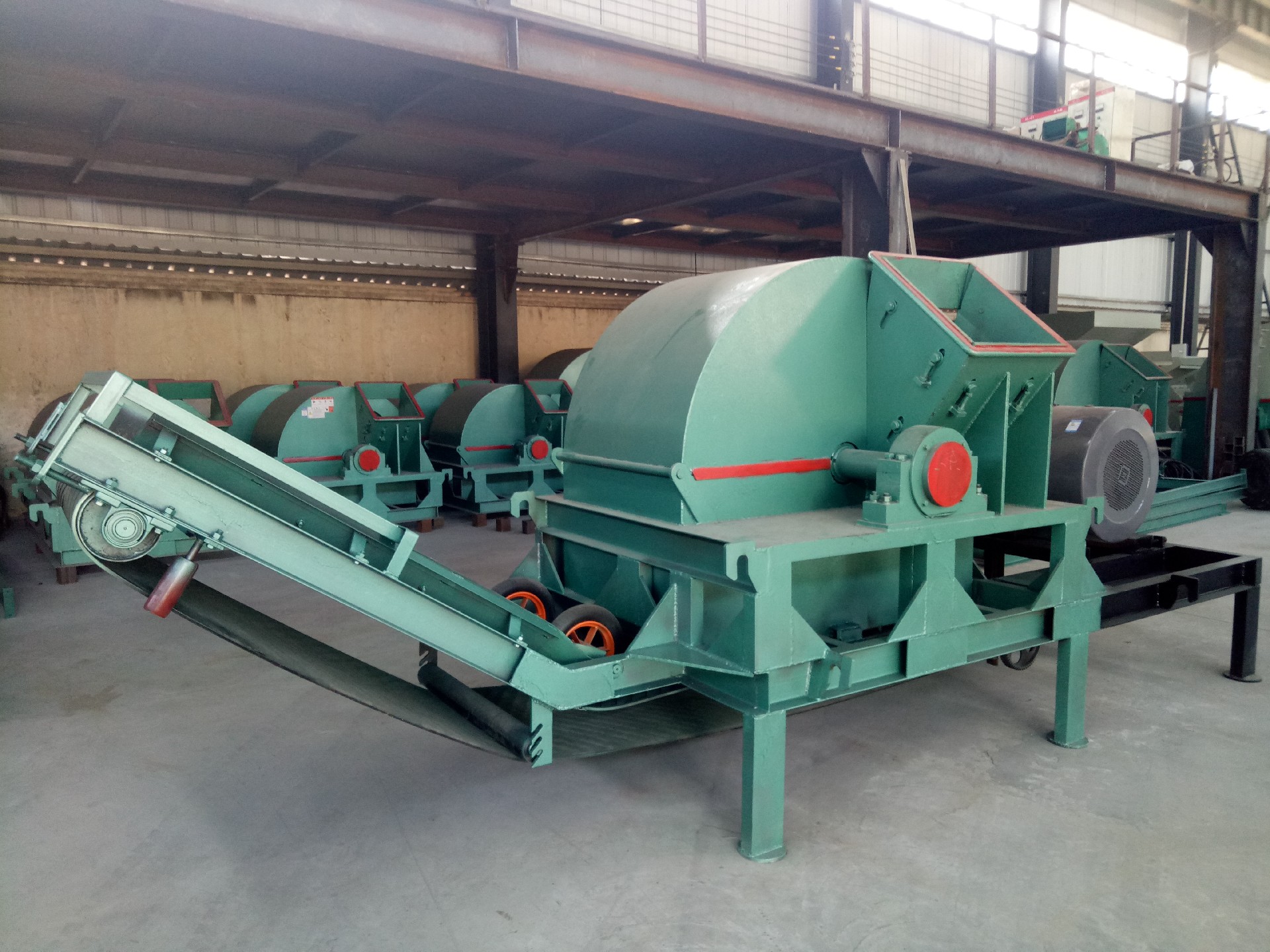

The mobile large-scale mushroom crusher is mainly powered by diesel and pulled by wheels, which realizes the purpose of free movement of the machine. It is suitable for the needs of users who change the site and changes the characteristics of flexible movement of the equipment. It is more suitable for the operation of outdoor users.
1, with less investment, low energy consumption, high productivity, good economic benefits, easy to use maintenance and other advantages.
2, the pulverized wood chip particle size is small, wood fiber is obvious, uniform discharge and other advantages, the whole equipment is driven by only one motor, simple structure, compact layout, cheap price, stable work, less energy consumption, high output, wood chip into a good quantity, low processing cost.
3, can be used for bamboo, thatch, corn stalk, sorghum stalk and other fibrous stalk material cutting, diesel mobile sawdust crusher can also do particleboard, sawdust board, high-density board of raw materials.
The mobile large-scale mushroom crusher is mainly powered by diesel and pulled by wheels, which realizes the purpose of free movement of the machine. It is suitable for the needs of users who change the site and changes the characteristics of flexible movement of the equipment. It is more suitable for the operation of outdoor users.
Model | 400 | 500 | 600 | 700 |
Cutter diameter mm | 400 | 500 | 600 | 700 |
Blade number piece | 4 | 4 | 4 | 6 |
Blade length mm | 100 | 130 | 150 | 200 |
Feed port diameter mm | 150×150 | 200×200 | 250×250 | 300×300 |
Spindle speed r/min | 2600 | 2600 | 2500 | 2600 |
Equipped with motor kw | 5.5-7.5 | 11 | 15 | 18.5-22 |
With diesel engine horsepower | 15 | 20 | 30 | 45 |
Yield kg/h | 800-1000 | 1000-2000 | 2000-3000 | 3000-3500 |
