Application Areas:
Widely used in papermaking, edible fungi, machine-made charcoal, particle board, sawdust board, high density board, medium fiber board and other industrial production
Application Areas:
Widely used in papermaking, edible fungi, machine-made charcoal, particle board, sawdust board, high density board, medium fiber board and other industrial production

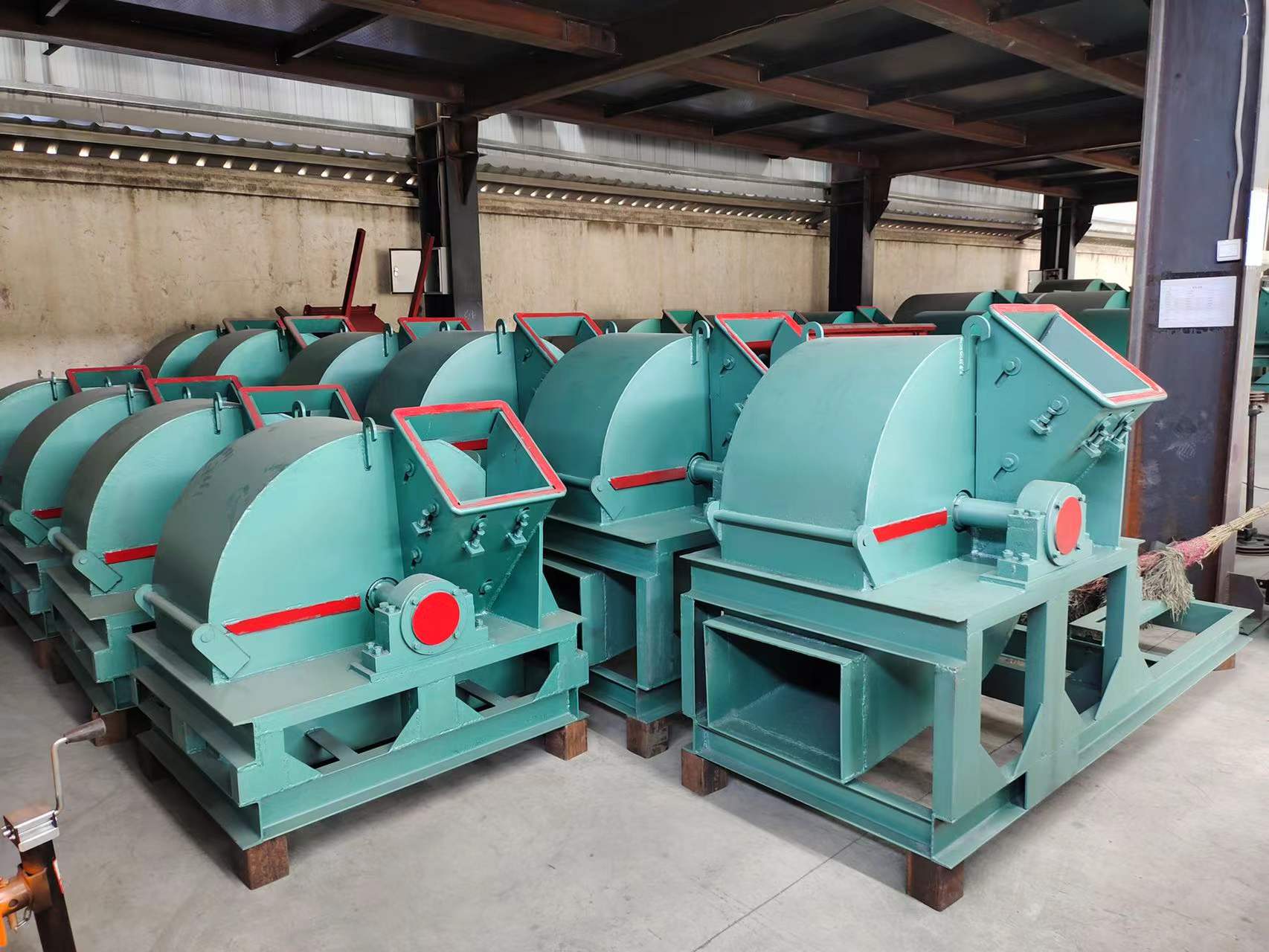

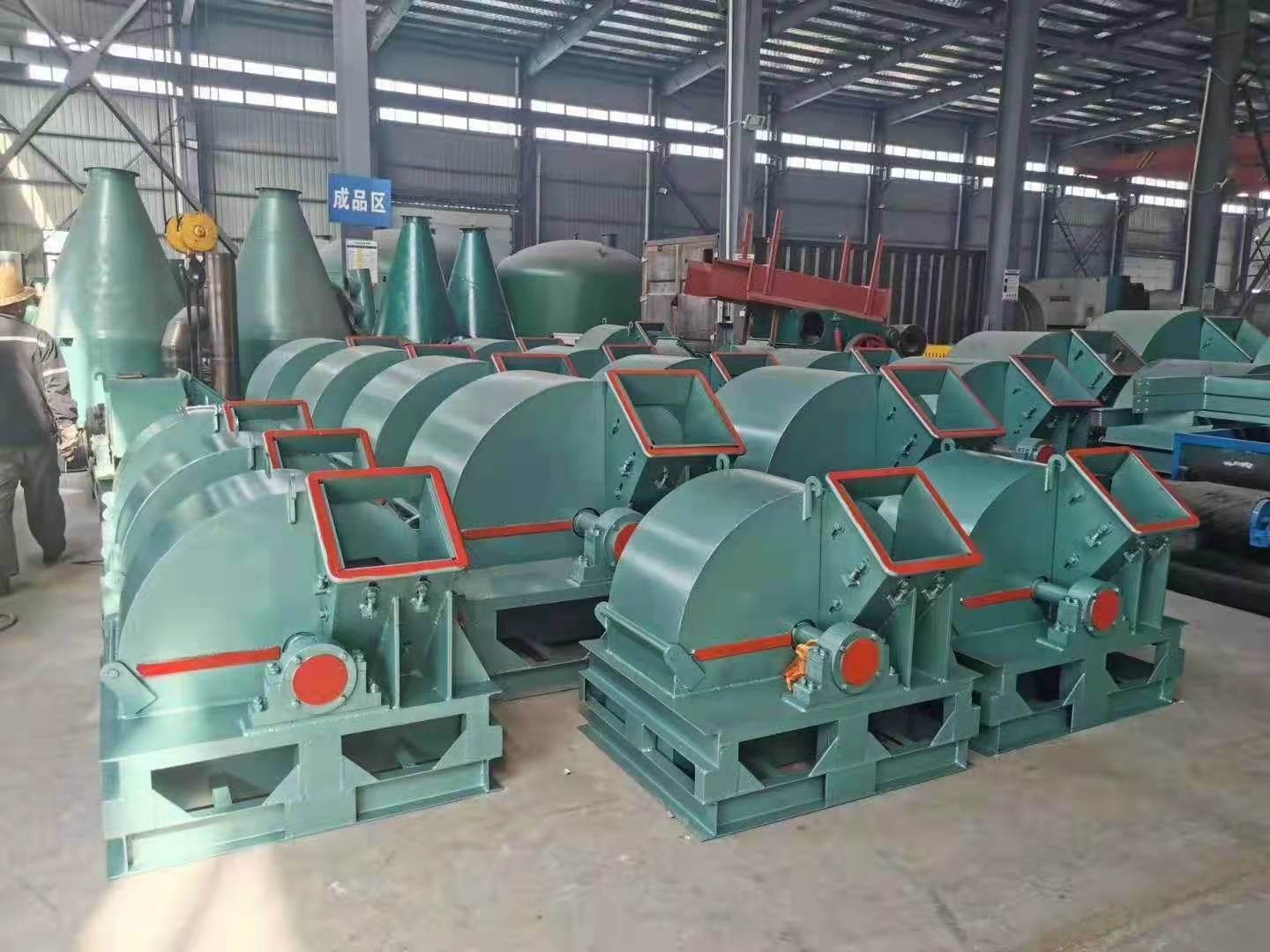

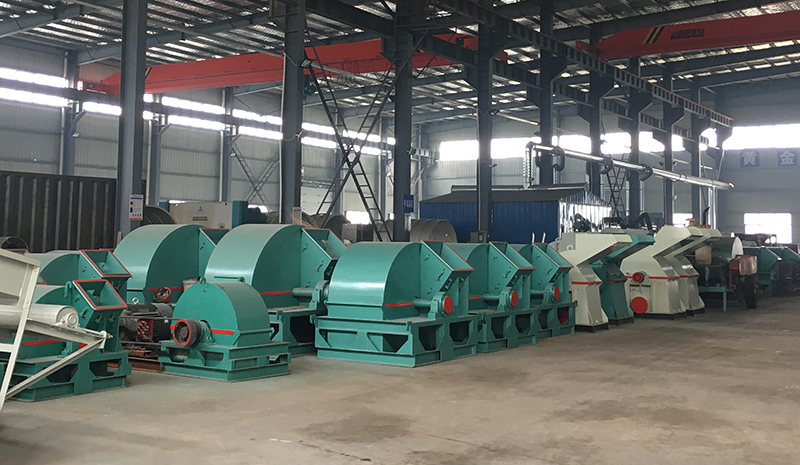

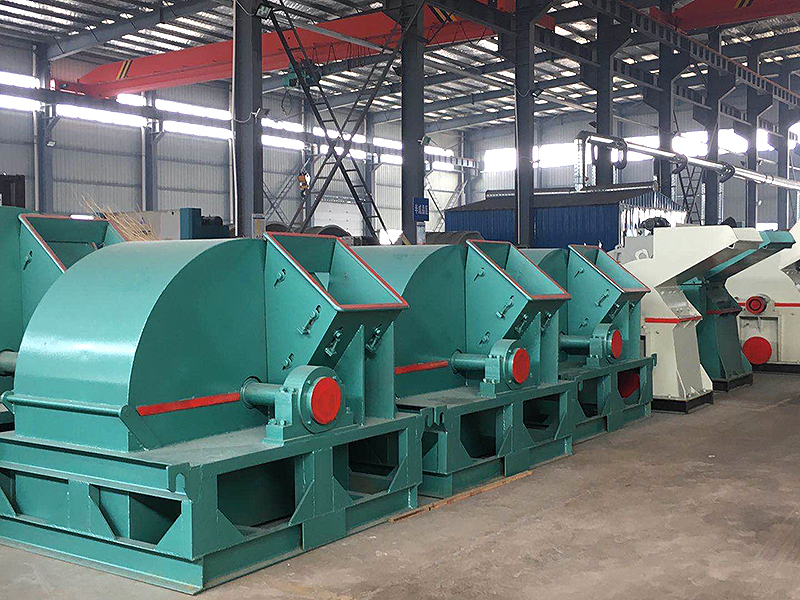

Seed mill is wood crushing series equipment in the production of wood powder commonly used equipment, the machine price is low, stable production, the whole machine only needs a motor to drive, simple structure and low processing cost, the most suitable for edible mushroom culture base.
1, seed mill is a new type of wood production series of woodworking machinery and equipment. The main parts of the seed mill are shell, bearing, screen, transmission wheel and trough frame. All materials are cast from manganese steel.
2, the whole equipment is driven by only one motor, simple structure, compact layout, cheap price, stable work, less energy consumption, high output, good quantity of wood chips, low processing cost. In addition to wood, it can also be used for bamboo, thatch, corn stalk, sorghum stalk and other fibrous stalk materials.
3, it is mainly the use of blade chips and the principle of air impact to crush the material to be crushed. This equipment is mainly composed of five parts: crushing, separating, wind conveying, unloading and dust removal. It cancels the traditional screening process and uses wind energy to form powder once. The performance of the machine has been greatly improved compared with other similar products.
The feed port of the seed mill adopts self-priming feed, replacing the direct feed of the traditional mill to ensure production. Driven by the motor pulley, the crusher rotor to do high-speed operation, while the rotor produces high speed air flow with the direction of the blade rotation, the material in the airflow acceleration and repeated impact, cutting friction, while subjected
to three kinds of crushing action, the material is crushed into the wind flow into the analyzer for analysis, Because it is affected by the centrifugal force of the analyzer rotor and the effect of the air flow force, when the centrifugal force is greater than the centripetal force, the fine particles enter the dust collector and the coarse particles enter the centrifugal comminution chamber and
continue to be crushed until the fineness you are satisfied with is reached.
Model | 400 | 500 | 600 | 700 |
Cutter diameter mm | 400 | 500 | 600 | 700 |
Blade number piece | 4 | 4 | 4 | 6 |
Blade length mm | 100 | 130 | 150 | 200 |
Feed port diameter mm | 150×150 | 200×200 | 250×250 | 300×300 |
Spindle speed r/min | 2600 | 2600 | 2500 | 2600 |
Equipped with motor kw | 5.5-7.5 | 11 | 15 | 18.5-22 |
With diesel engine horsepower | 15 | 20 | 30 | 45 |
Yield kg/h | 800-1000 | 1000-2000 | 2000-3000 | 3000-3500 |
Thank you for your interest in Henan Enhon Machinery Equipment Co., Ltd.. If you want to know more about our crushers and industrial grinding equipment.
Contact us now to find out what we can do for you!
