Application Areas：

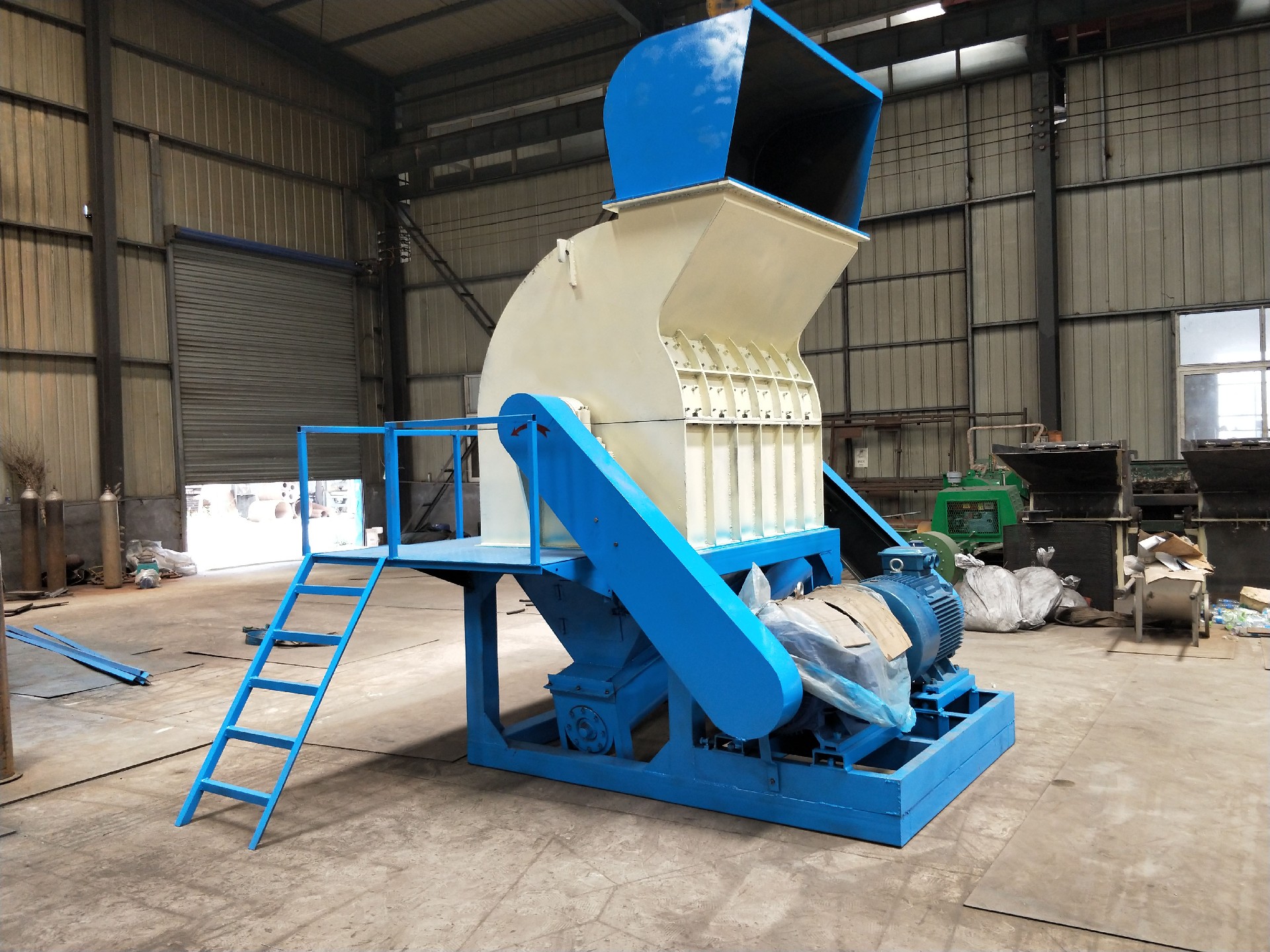

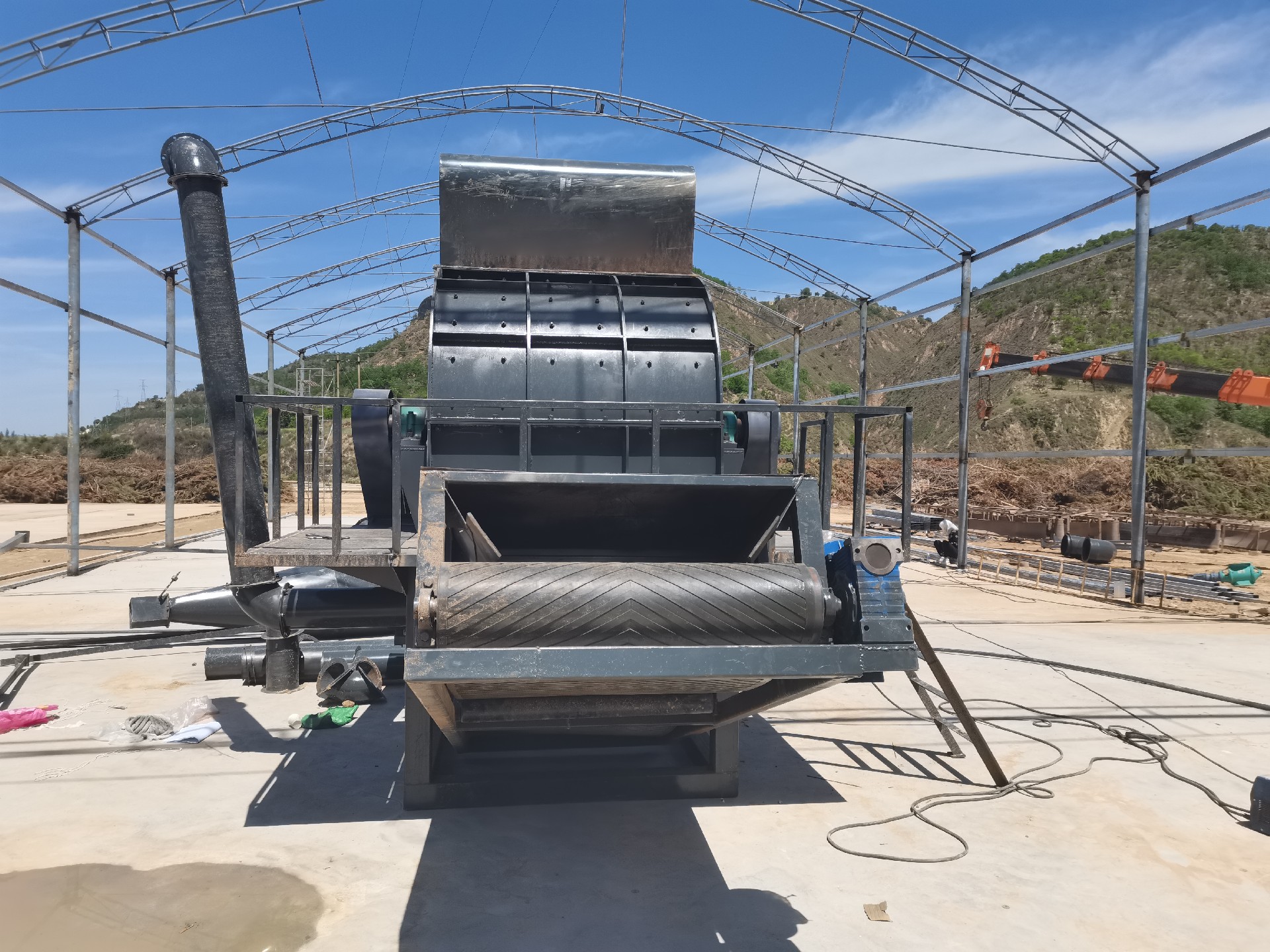

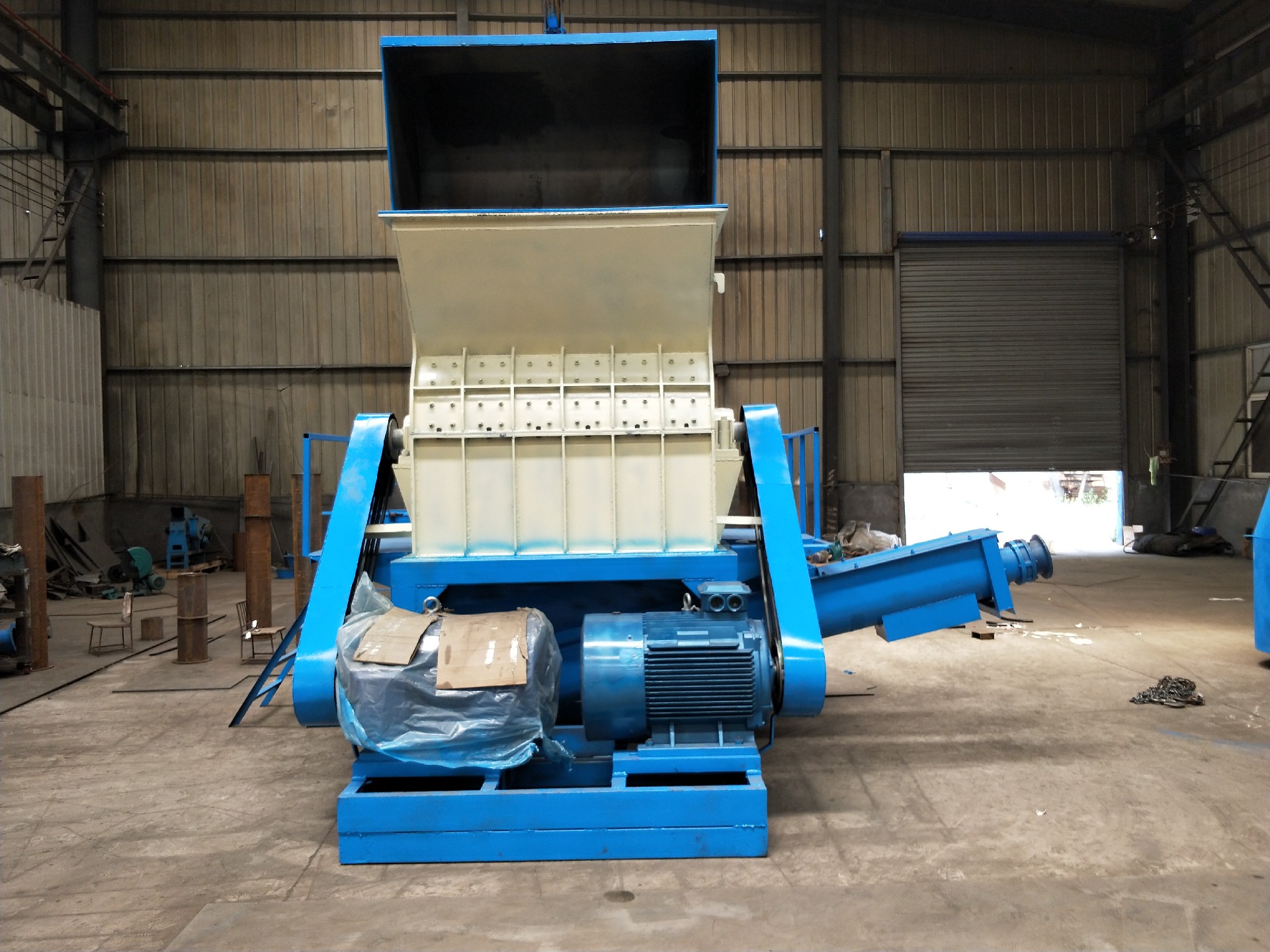

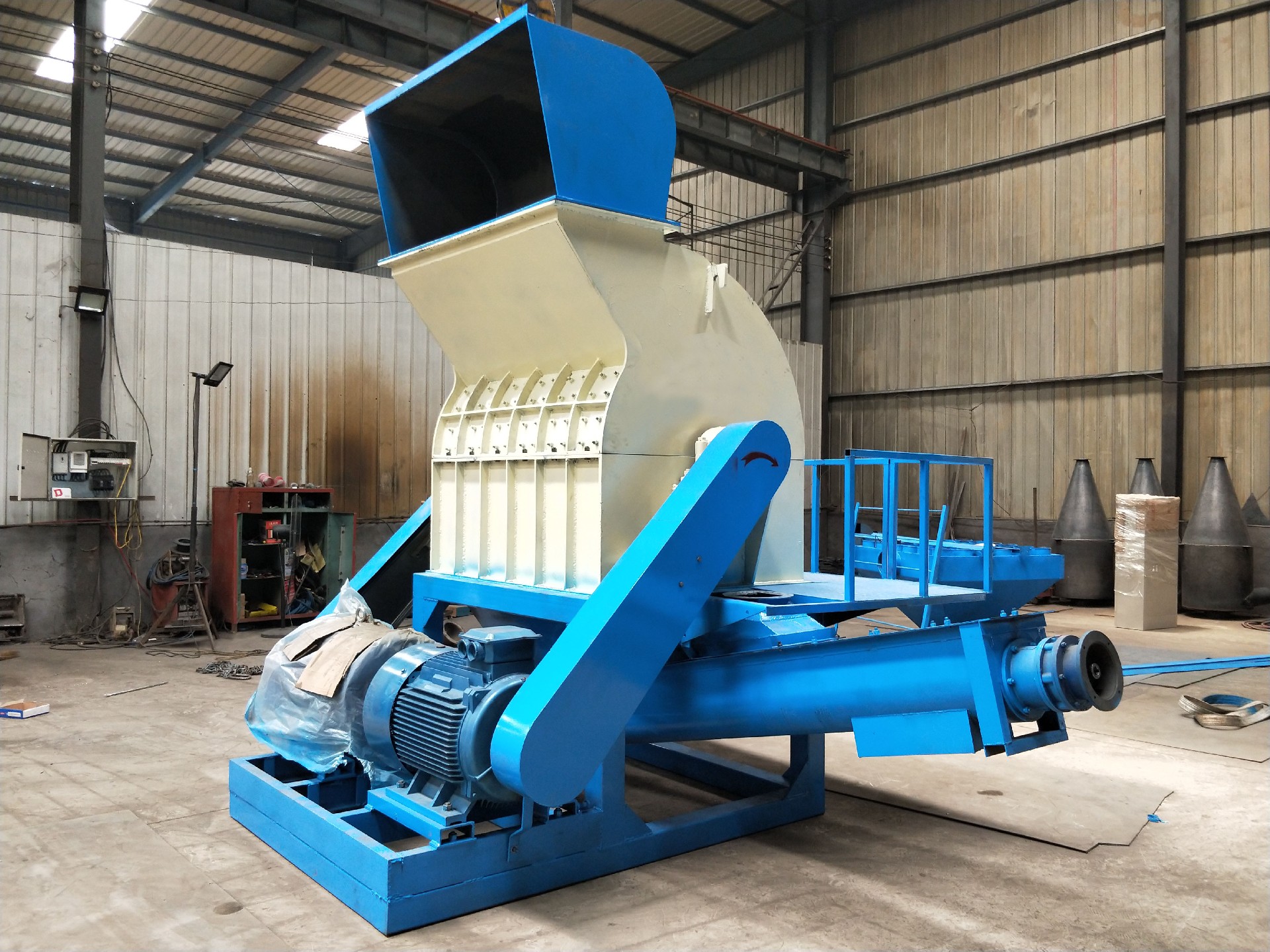

Straw crusher is both environmental protection and energy saving, is a high efficiency, high yield, stable work of modern straw crushing equipment.
Straw crusher adopts the principle of high-speed cutting to crush into filaments at one time. Straw fermentation is a good food for cattle, sheep, horses and other livestock. The large straw crusher can also crush crop straw into materials suitable for breeding ponies, lambs and other livestock as bedding, as well as raw materials for particle, organic fertilizer, briquette combustion, steam, combustion materials of biological power plants and other purposes.
1. Feeding mechanism: it is mainly composed of feeding table, upper and lower Cao Kun, fixed blade and fixed blade support seat.
2. Cutting and throwing mechanism: mainly composed of moving knife, cutter head, locking screw, etc.
3. Transmission mechanism: mainly composed of V-belt, transmission shaft, gear, universal joint, etc.
4. Protective device: composed of protective cover.
The large-scale straw crusher is the first choice for papermaking and pulping, biological power generation and straw acquisition. The machine is composed of rotating feeding bin, grass cutting device, bin bottom plate and frame. The grass cutting device is composed of a main shaft, a blade, a cutter head, a blade pin and a grooving motor. The machine is mainly used for the recycling of crop straw; The crushed straw can be used for power generation, green storage and breeding, alcohol production, energy conversion, and crushing as raw materials for papermaking and high-density wood-based panels.
Model | Number of screens (sheet) | Number of pieces (pieces) | Main Engine Power (kw) | Production (tons) | Overall dimensions (mm) |
600 | 1 | 40 | 30-37 | 1.5-1.8 | 2500*1100*1520 |
800 | 1 | 48 | 45-55 | 2-2.5 | 2900*1360*1740 |
1000 | 1 | 64 | 55-75 | 3-3.5 | 2900*1600*1760 |
1300 | 1 | 80 | 90-110 | 4-4.5 | 3500*1880*2150 |
1600 | 1 | 104 | 110-132 | 5-5.5 | 2550*2190*2230 |
