Application Areas：
Model | Power (KW) | Yield (T/H) |
EH-560 | 90 | 1-1.5 |
EH-850 | 220 | 2.5-3 |
EH-920 | 315 | 3-4.5 |
EH-1050 | 450 | 4.5-6 |
Application Areas：

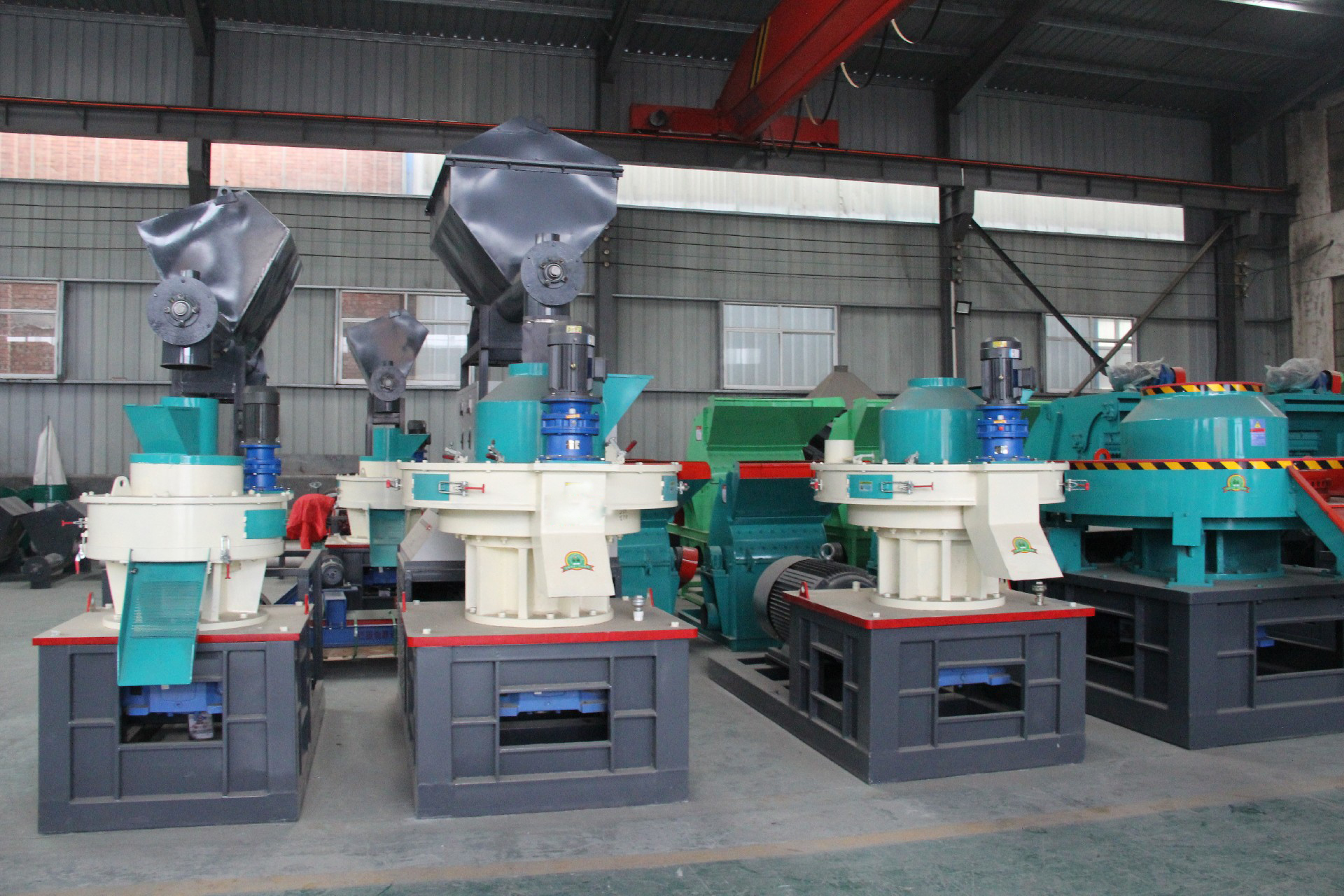

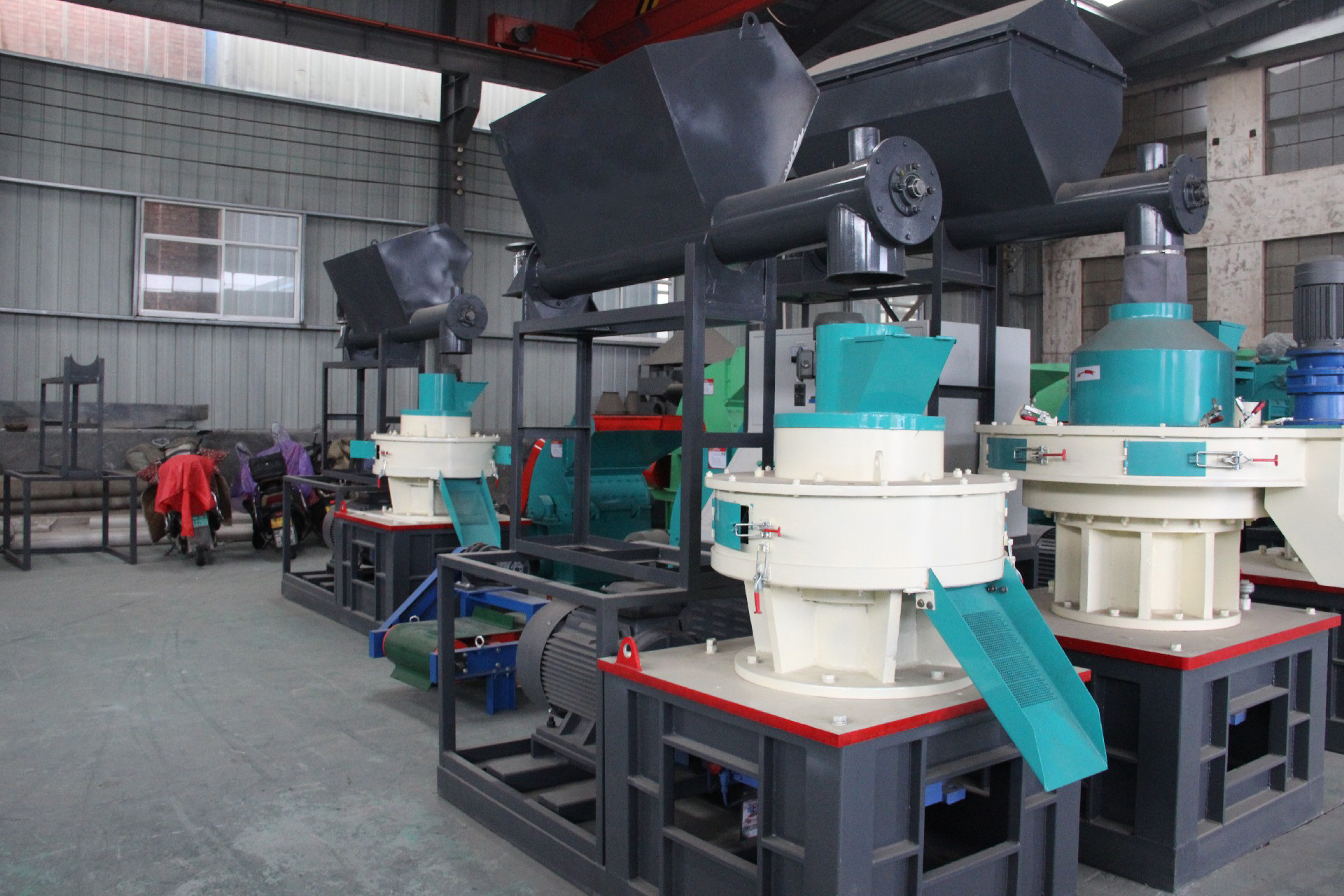

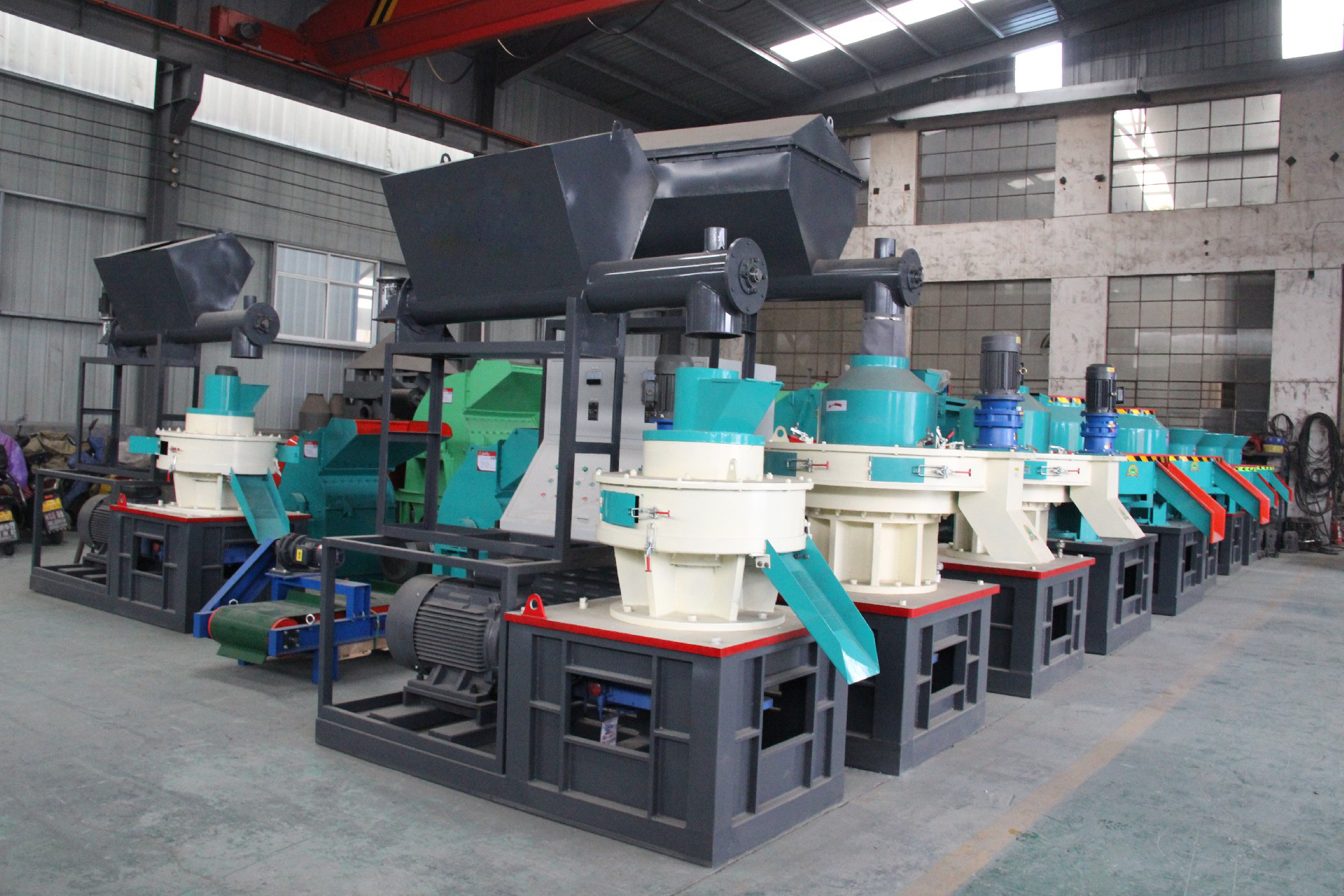

Straw pellet machine is a biomass pellet fuel molding machine with corn straw, cotton straw, soybean straw, rice straw, wheat straw, wood bran, wood powder, wood chips, rice husk, peanut shell, peanut and other agricultural wastes as raw materials.
Leading domestic, with forced feeding mechanism, smooth operation. Feed uniform and reliable, high output, low energy consumption, suitable for material proportion of 0.3-0.6g/cm3 light material granulation.
1. The main drive adopts high-precision reducer gear drive, and the ring die adopts quick-discharge hoop type, the output is about 20% higher than the belt drive type.
2. The transmission part of the whole machine adopts high-quality imported bearings and oil seals.
3. Carbon steel with large reinforcement feed conditioner, frequency conversion speed control, to ensure the high quality of particles. (Optional)
4. The stainless steel ring mold processed by advanced CNC gun drilling and vacuum furnace heat treatment manufacturing process in the United States has long service life, smooth grain production and high quality.
5. The coupling has novel structure, compact, safe, low noise and low fault performance.
6. Strengthen the working intensity of the main working parts from the material, heat treatment and other processes, so as to meet the pelletizing requirements of straw particles.
7. Add non-stop refueling system, air cooling system, low energy consumption, stable operation, good grain quality.
The material is formed by the interaction principle of extrusion friction between the press wheel and the die. There is no need to add any additives or binders to the material during processing. Straw and other materials contain cellulose and lignin, and the lignin is a structural monomer in the material and a polymer compound of phenylpropane type. It can strengthen cell wall and bond cellulose. Lignin is a non-crystal, at room temperature, the main part is insoluble in any solvent, no melting point, but there is a softening point. When the temperature reaches a specific value, the softening and bonding force of lignin increases, and under the action of a specific pressure, the cellulose molecular groups are misaligned, deformed and extended, and the adjacent biomass particles in the interior are connected to each other, recombined and pressed.
Model | Power (KW) | Yield (T/H) |
EH-560 | 90 | 1-1.5 |
EH-850 | 220 | 2.5-3 |
EH-920 | 315 | 3-4.5 |
EH-1050 | 450 | 4.5-6 |
