Rubber shredder
Feed size
Capacity
Rubber shredder
Power
Rubber shredderSALE

Application Areas:

Industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper and other industries.

Product Description

   Rubber shredder meets the requirements of waste recycling in various industries, and is suitable for crushing thick and unbreakable materials, such as used car shells, household waste, plastic, metal, wood, waste rubber, packaging barrels, pallets, tons of bags, waste plastics and other large materials.There are many types of recyclable materials, and chopped materials can be recycled directly or further refined as needed. Rubber shredder is suitable for industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper and other industries.




Technical Features

1. The tire shredder is easier to tear than the single-axis shredder, which is better and more efficient for some relatively large materials such as large plastics, rubber tires, fibers, TV sets, door panels and so on.

2. Two-axis shearing is more suitable for some framed materials.

3. Safety signs and safety labels to ensure safe use;

4. Can be equipped with conveyor belt feeding.


Working Principle

  The rubber shredder has the characteristics of compact structure, small footprint, low noise, etc. The whole action is completed by electrical control cabinet, and the degree of automation is high. With wide applicability and highefficiency, it is an ideal equipment for customers to save labor costs, improve sales efficiency and economic benefits.

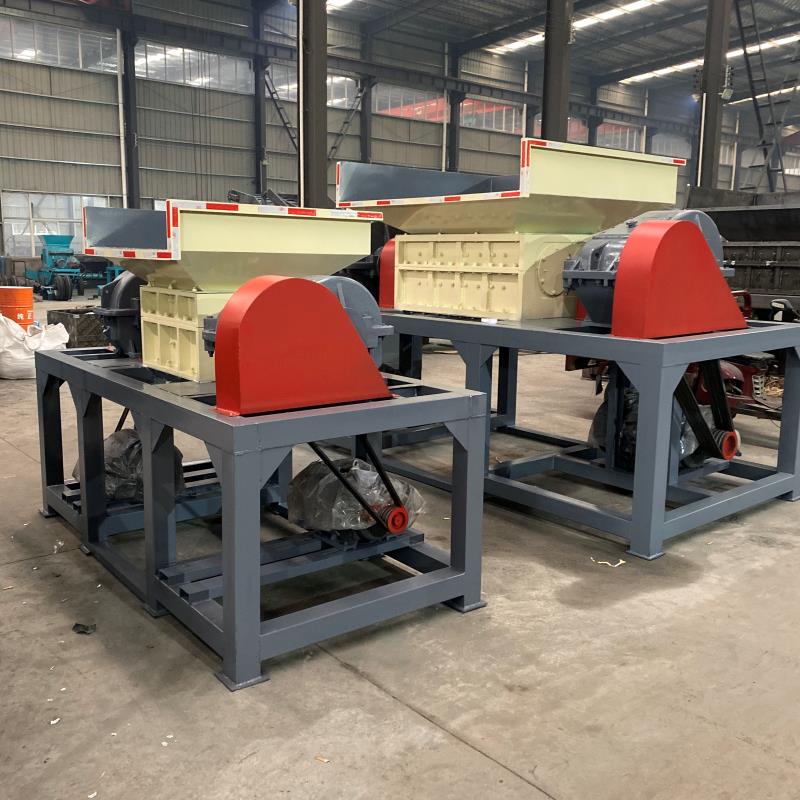

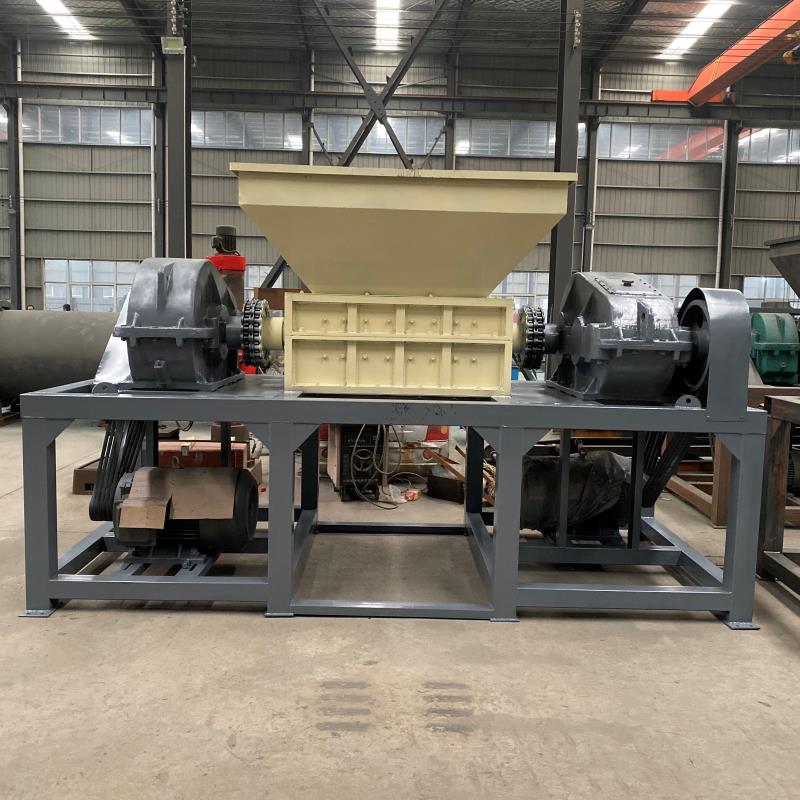

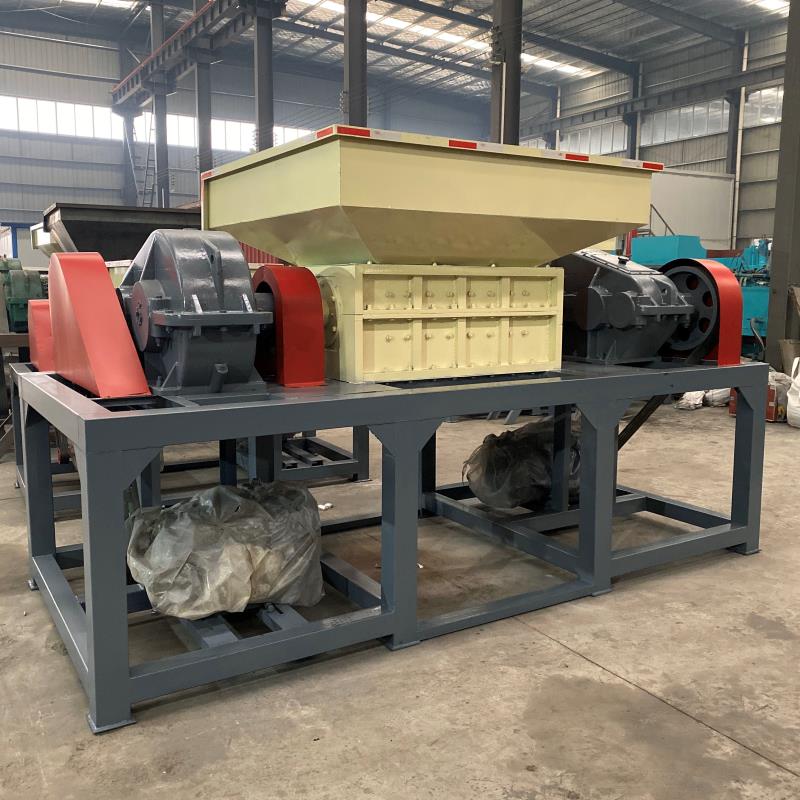

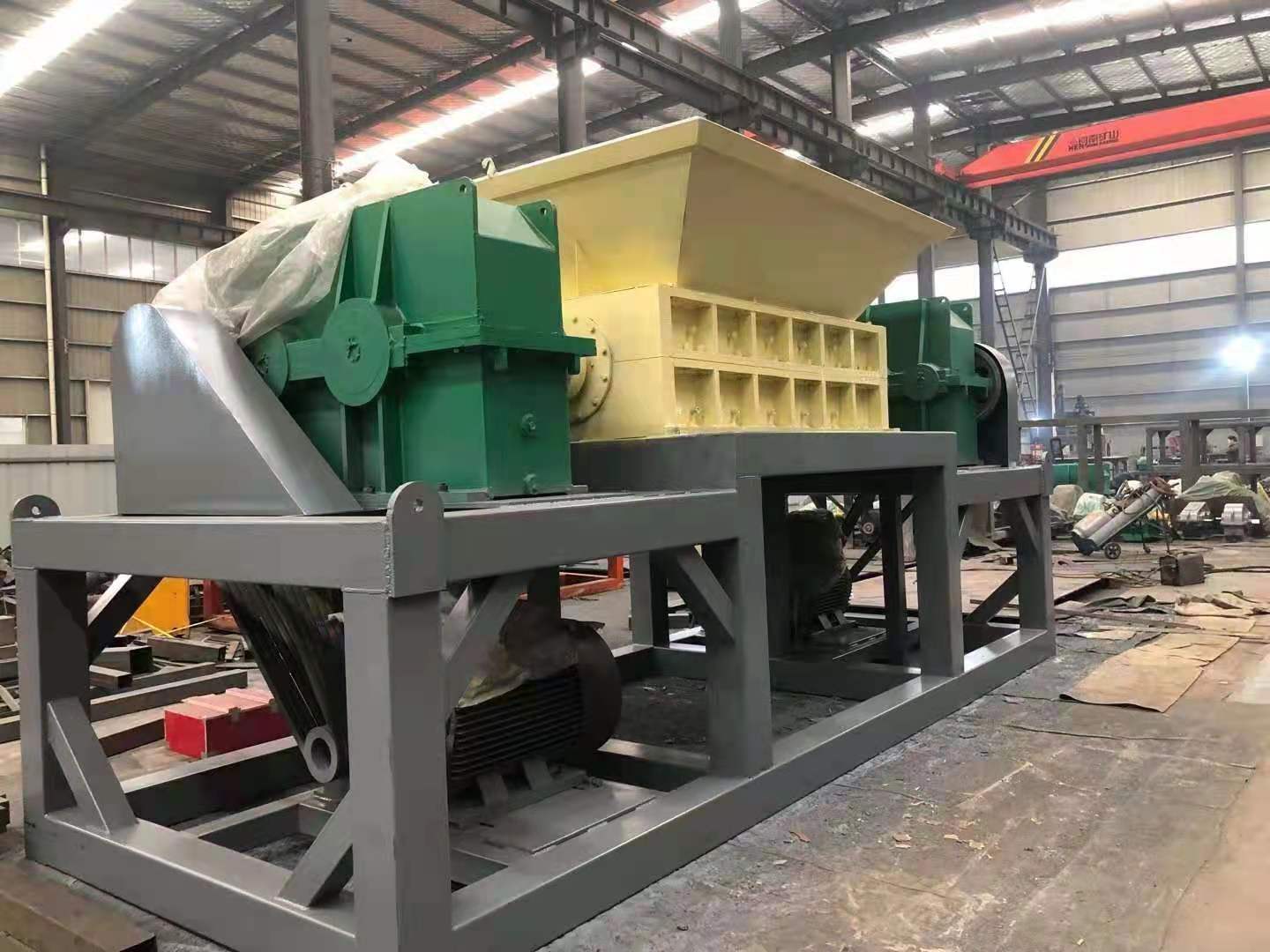

Product Gallery
Performance parameter

Model

Overall dimensions (L W H)(mm)

Crushing chamber size (mm)

Blade diameter (mm)

Blade thickness (mm)

Number of blades (pieces)

Power (kw)

Weight (kg)

EH-500

2800×1300×1850

500×480

200

20

24

11×2

2200

EH-800

3000×1300×1850

800×480

200

20

40

15×2

2500

EH-1000

3300×1900×2200

1000×690

300

40

24

22×2

5200

EH-1200

3600×2000×2200

1200×690

300

40

30

30×2

6400

EH-1500

4180×2100×2400

1500×850

550

50/75

30/20

55×2

9000

EH-1800

5800×2400×3300

1800×1206

550

50/75

36/24

75×2

13600

EH-2000

6400×2700×3500

2000×1490

600

50/75

40/26

90×2

20100

EH-2500

7500×3200×3800

2500×1800

600

75/100

32/24

110×2

25000

EH-3000

8600×3500×4000

3000×1800

600

75/100

40/30

160×2

31000

Remark:1.The number, diameter and thickness of blade claws can be customized according to the type of material and discharge size;

                    2. Different types of materials and discharge sizes, equipment output will be differen
