Double shaft shredder
Feed size
Capacity
Call for consultation
Power
Double shaft shredderSALE

Application Areas:

Industrial waste recycling, medical recycling, electronic manufacturing, pallet manufacturing, wood processing, domestic waste recycling, plastic recycling, tire recycling, paper and other industries.

Product Description

  Biaxial shredder is used to crush plastics, metals, rubber, tires, fibers, aluminum, wood, large hollow materials (large containers such as plastic barrels) and various mixed wastes, especially those containing metals, such as paint barrels, automobile bodies, ice elimination, waste steel plates, mineral water bottles, plastic bottles, wood powder, wooden pallets, plastic shells, cylinder heads, aluminum plates, wires and wood plates, Woven bag, nylon rope, rag, rope, etc.







Technical Features

  1. Highly optimized geometric design and power matching to ensure output

  2. The shredder has low operation cost and long service life.

  3. The machine is controlled by PLC to ensure the tearing efficiency and control power, which is convenient for operation

  4. The knife is made of nine chromium silicon alloy, which is durable.


Working Principle

  The materials enter the shredding box through the feeding system, and the box carries even shredding blades. The materials are shredded into small pieces through the comprehensive effects of shredding blades, tearing, extrusion, shearing and so on. Discharge from the lower part of the box.

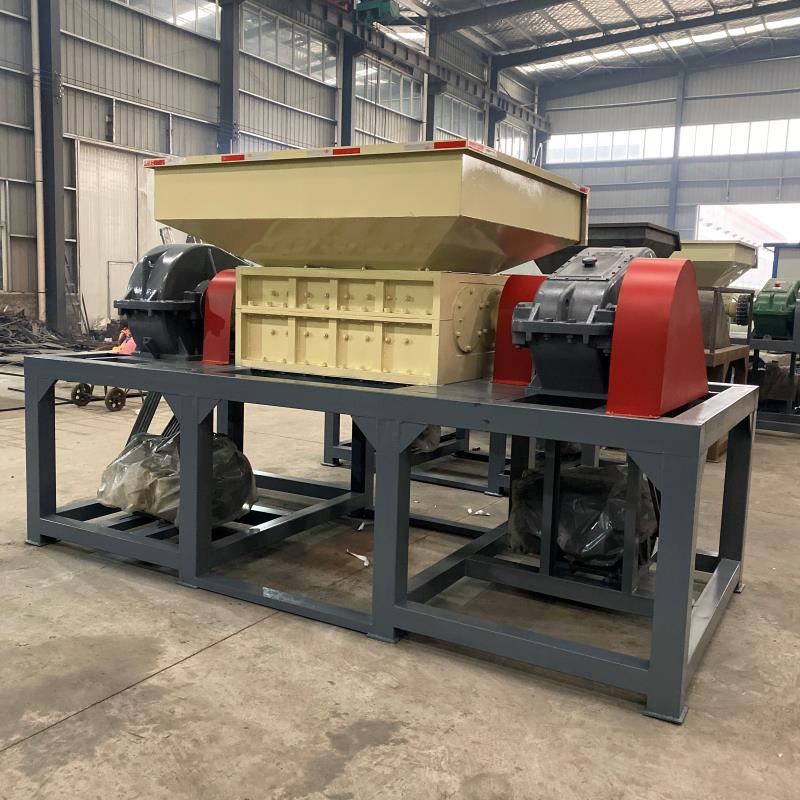

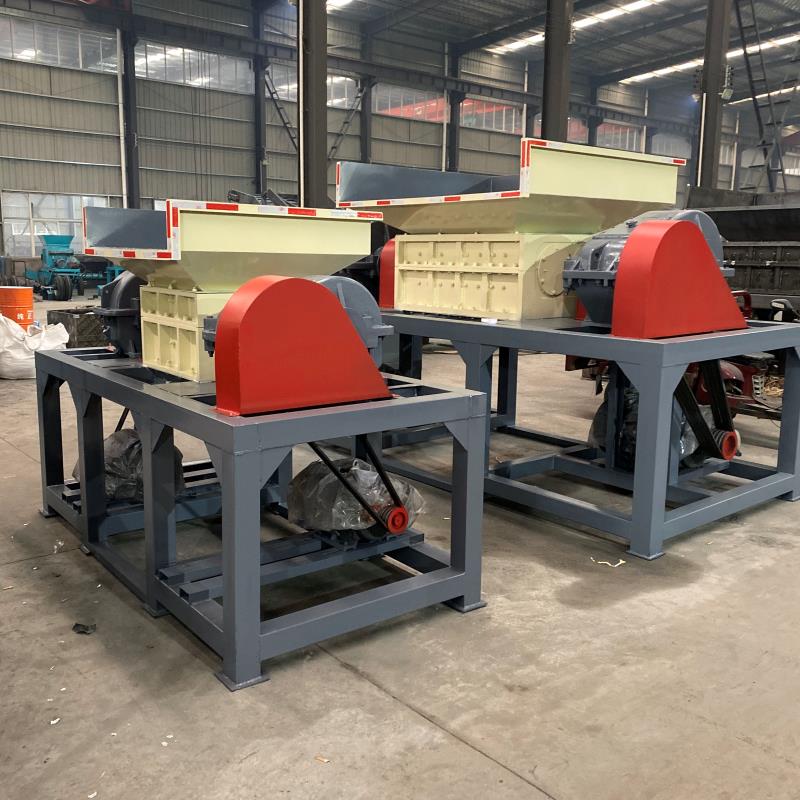

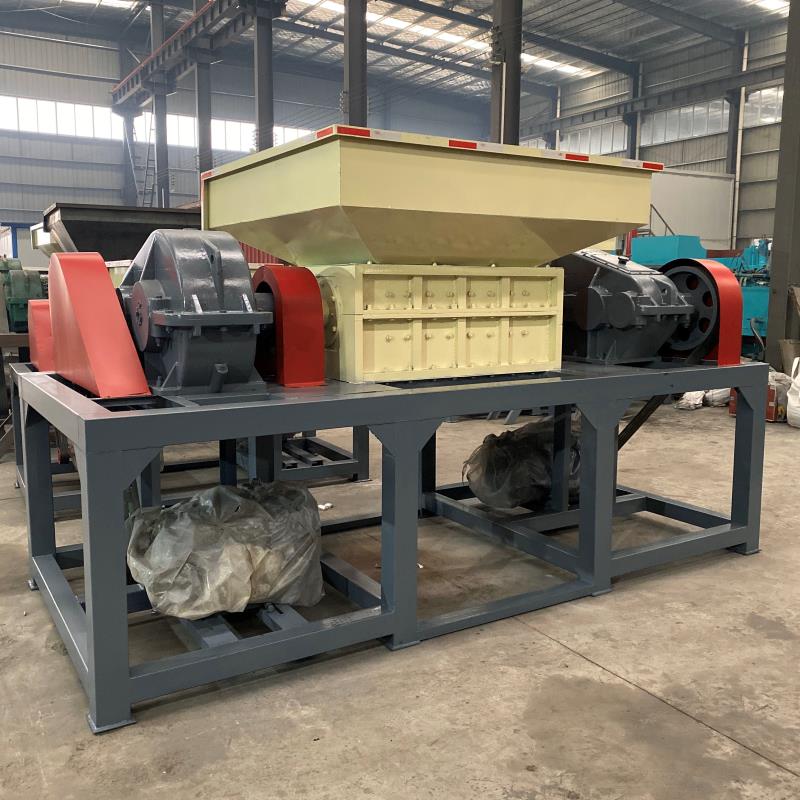

Product Gallery
Performance parameter

Model

Overall dimensions (L W H)(mm)

Crushing chamber size (mm)

Blade diameter (mm)

Blade thickness (mm)

Number of blades (pieces)

Power (kw)

Weight (kg)

EH-500

2800×1300×1850

500×480

200

20

24

11×2

2200

EH-800

3000×1300×1850

800×480

200

20

40

15×2

2500

EH-1000

3300×1900×2200

1000×690

300

40

24

22×2

5200

EH-1200

3600×2000×2200

1200×690

300

40

30

30×2

6400

EH-1500

4180×2100×2400

1500×850

550

50/75

30/20

55×2

9000

EH-1800

5800×2400×3300

1800×1206

550

50/75

36/24

75×2

13600

EH-2000

6400×2700×3500

2000×1490

600

50/75

40/26

90×2

20100

EH-2500

7500×3200×3800

2500×1800

600

75/100

32/24

110×2

25000

EH-3000

8600×3500×4000

3000×1800

600

75/100

40/30

160×2

31000

Remark:1.The number, diameter and thickness of blade claws can be customized according to the type of material and discharge size;

                    2. Different types of materials and discharge sizes, equipment output will be differen
