Paint bucket shredder
Feed size
Capacity
400-6000kg/ hour
Power
Paint bucket shredderSALE

Application Areas:

Iron powder, ferromanganese powder, aluminum powder, zinc powder, ferrosilicon powder, all metals can be crushed

Product Description

 Paint barrel shredder is a new type of energy-saving and environmentally friendly shredding equipment for shredding metal such as paint barrels and recycling metal materials to achieve the recycling of resources; It also combines all the advantages of the crusher, is an advanced crushing equipment. The biggest advantage of the paint drum shredder is that it can maximize meet the basic requirements of the electric furnace steelmaking for concentrate steelmaking and shorten the smelting time, and the pure torn steel can also be used as the addition of the converter steelmaking.










Technical Features

  1. The paint bucket shredder is easier to tear than the single-axis shredder, which is better and more efficient for some relatively large materials such as large plastics, rubber tires, fibers, TV sets, door panels and so on.

  2. Two-axis shearing is more suitable for some framed materials.

  3. Safety signs and safety labels to ensure safe use;

  4. Can be equipped with conveyor belt feeding.







Working Principle

   The paint drum shredder uses the basic principle of hammer hitting, the feeding port is equipped with a filter conveyor belt, driven by the high-speed high-torque motor, the hammer head on the main engine rotor takes turns to hitthe objects to be broken into the chamber, and tears the objects to be broken into the specifications through the space formed between the lining plate and the hammer head. According to the working condition of the crusher, it can be divided into dry system, wet system and semi-wet system. The dry system mainly refers to the broken material must pass through the air rotation sorting system to separate the metal and non-metal, and the whole system is equipped with a dust removal device. The wet system means that water is sprayed at the same time of crushing, and water is washed at the same time of sorting.

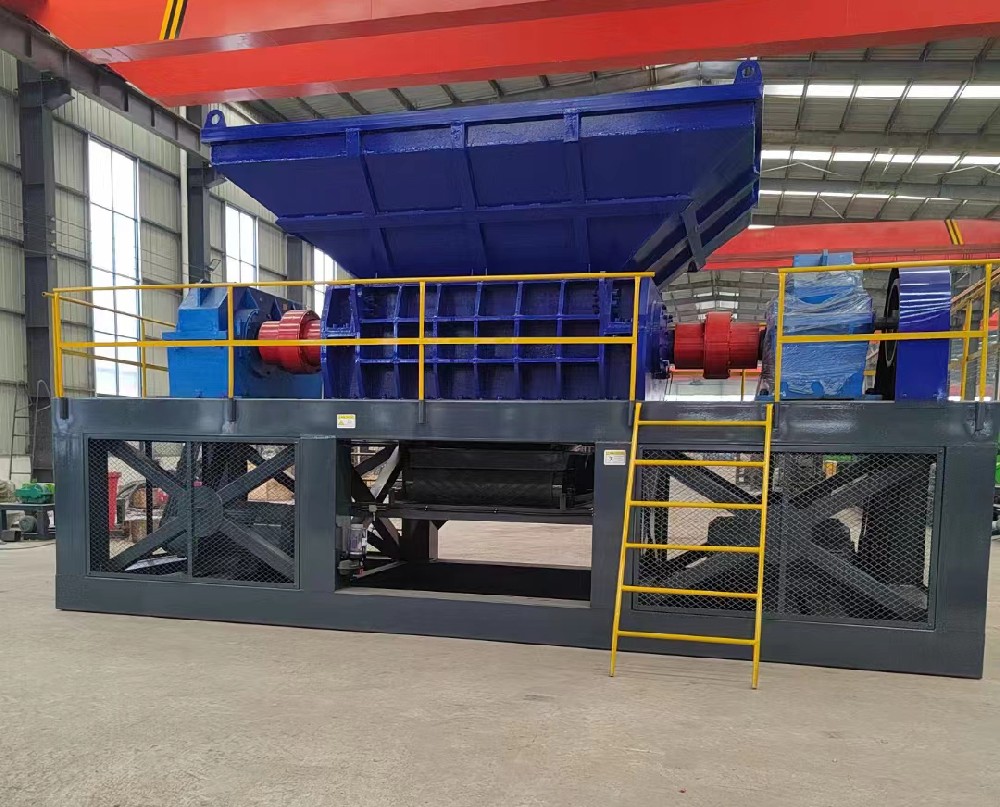

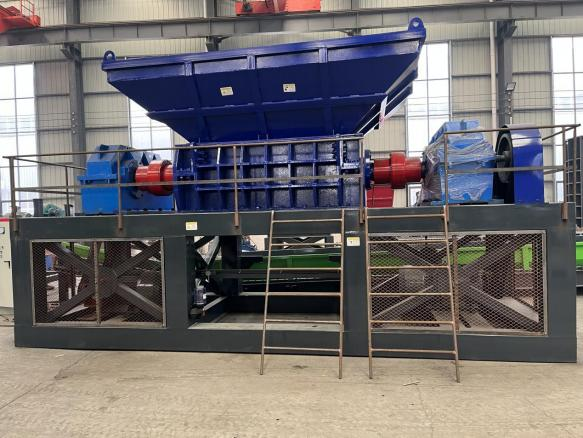

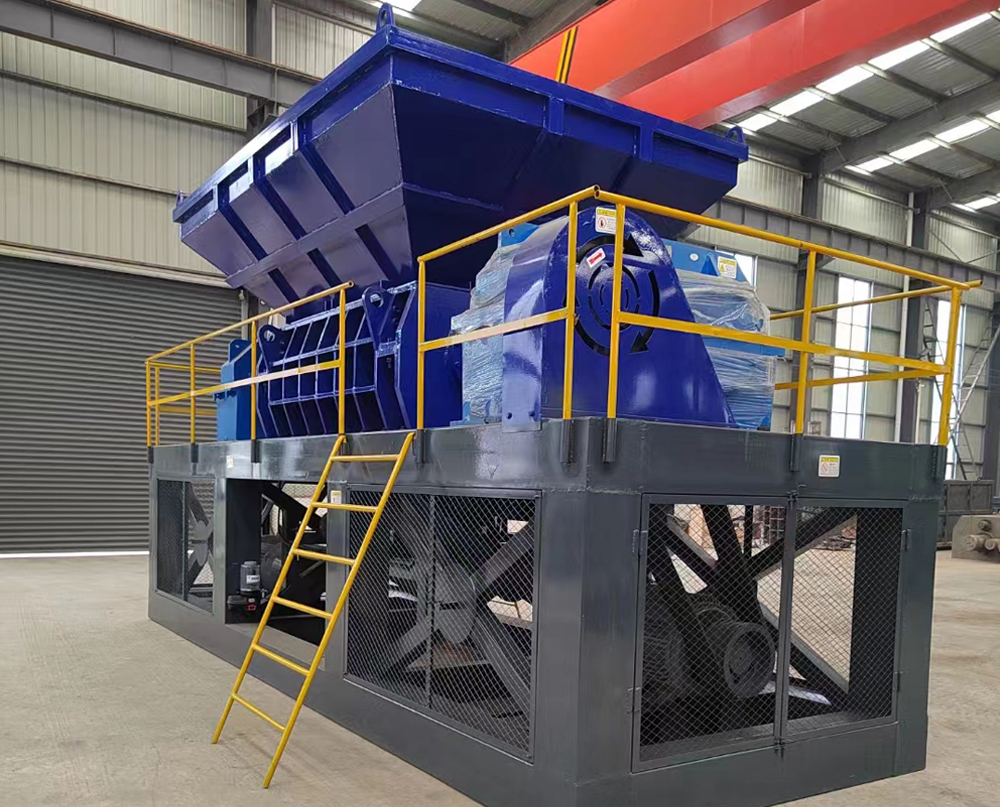

Product Gallery
Performance parameter

Model

Overall dimensions (L W H)(mm)

Crushing chamber size (mm)

Blade diameter (mm)

Blade thickness (mm)

Number of blades (pieces)

Power (kw)

Weight (kg)

EH-500

2800×1300×1850

500×480

200

20

24

11×2

2200

EH-800

3000×1300×1850

800×480

200

20

40

15×2

2500

EH-1000

3300×1900×2200

1000×690

300

40

24

22×2

5200

EH-1200

3600×2000×2200

1200×690

300

40

30

30×2

6400

EH-1500

4180×2100×2400

1500×850

550

50/75

30/20

55×2

9000

EH-1800

5800×2400×3300

1800×1206

550

50/75

36/24

75×2

13600

EH-2000

6400×2700×3500

2000×1490

600

50/75

40/26

90×2

20100

EH-2500

7500×3200×3800

2500×1800

600

75/100

32/24

110×2

25000

EH-3000

8600×3500×4000

3000×1800

600

75/100

40/30

160×2

31000

Remark:1.The number, diameter and thickness of blade claws can be customized according to the type of material and discharge size;

                    2. Different types of materials and discharge sizes, equipment output will be differen
