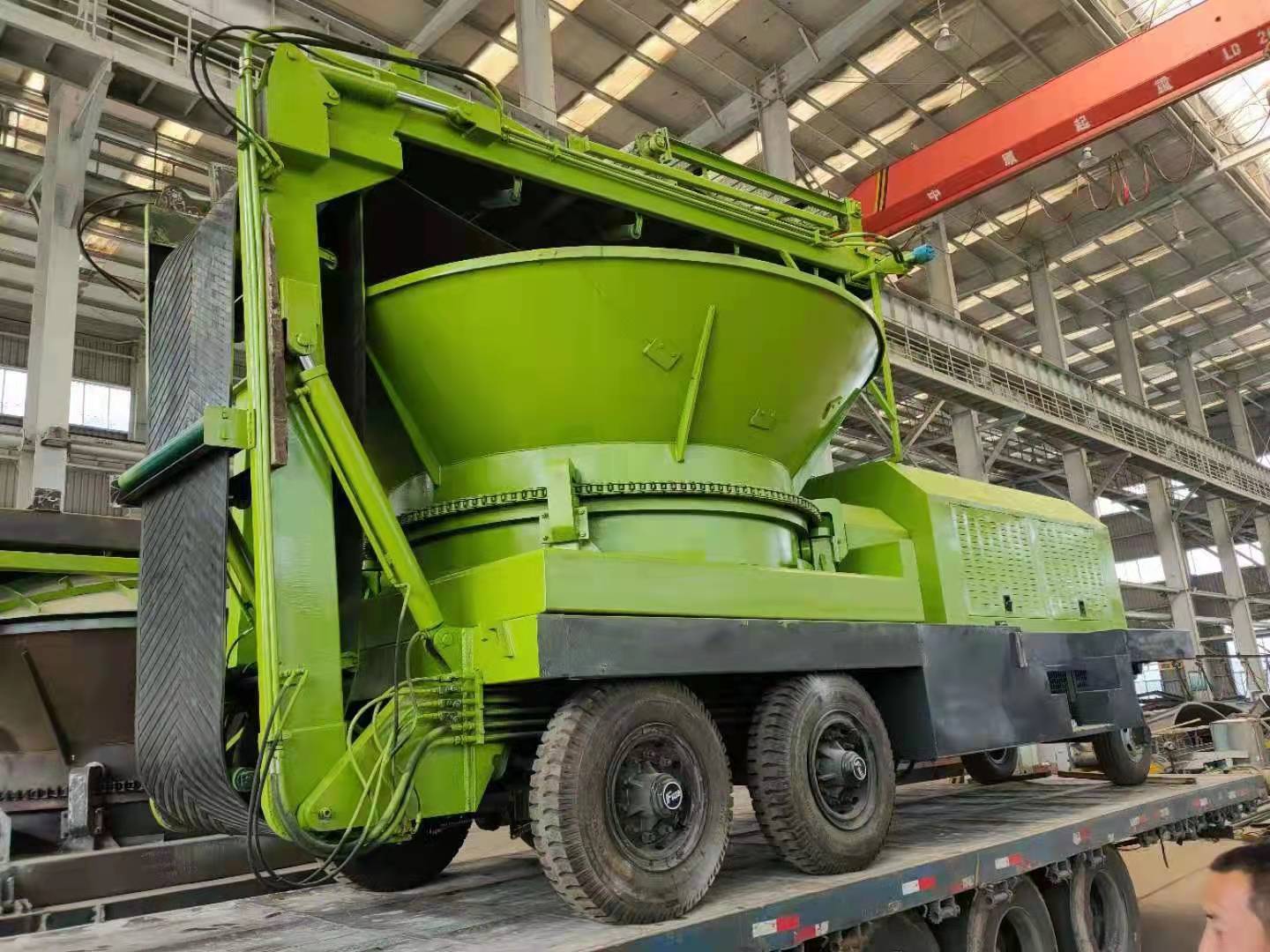

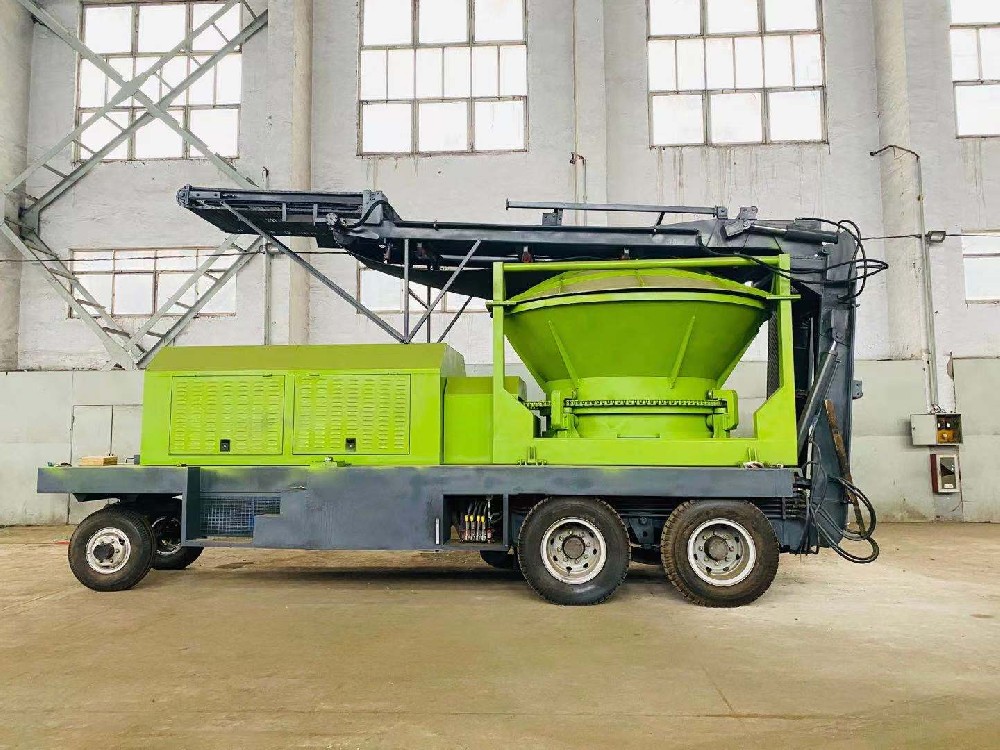

Mobile round pot crusher is a large-scale wood crushing equipment developed and produced by our company by introducing advanced technology at home and abroad. The main models of the equipment are 3000 / 3600 / 5000 / 7000. The structure of the machine mainly includes frame, casing, power system, hydraulic system, electrical system, rotating material box driven by material box driving device and rotor driven by rotor driving device, The rotor is located below the rotating material box, and the feed inlet is offset from the center of the feed hopper. The power configuration of the new tree root crusher is driven by the original motor and changed to diesel engine, which is more flexible and convenient.

　　1. With the application of advanced technology, the offset feed port is combined with the shifting teeth installed on the inner wall of the feed hopper to assist the feed. Moreover, the equipment adopts frequency conversion technology. Once the rotor load is too large, the feed hopper will rotate in reverse, so the equipment will never worry about jamming.

　　2. The equipment has a wide range of application. The equipment can be used for crushing large-diameter materials such as tree roots and waste furniture, as well as for crushing packed straw. It is more suitable for crushing small-diameter wood and board leftover materials. It has the advantages of rapid feeding and high efficiency.

　　3. Convenient maintenance. The hydraulic material box turnover device can realize large angle turnover when the machine needs maintenance. After turnover, the rotor part is exposed. The maintenance is very convenient and reduces the use of labor.

　　4. The production cost is low. The equipment adopts a multi blade rotor knife roller, which can break the materials more thoroughly, and the reasonable arrangement and the use of advanced materials improve the service life of the blade and reduce the production cost.

　　5. The whole machine has a high degree of automation. The equipment realizes the automatic control of all electrical components, which can realize
the remote wireless control of remote control, reduce the use of labor, and ensure the safety of production.

　　When the comprehensive wood crusher works, the motor drives the rotor to rotate at a high speed, and the feed hopper also rotates slowly driven by the motor. The materials are put into the hopper through the grab. While the hopper rotates, the material shifting teeth on the inner wall will shift the materials evenly to the rotor, When the high-speed rotating rotor touches the materials, the preliminary crushing of the materials is realized through the cutting and tearing of the blade on the rotor. The materials entering the preliminary crushing do not fall on the screen in the crushing chamber under the action of their own gravity and rotor impact, and the materials meeting the requirements will be discharged through the screen, If it does not meet the requirements, it will be broken twice or even three times in the crushing chamber until it meets the requirements.
